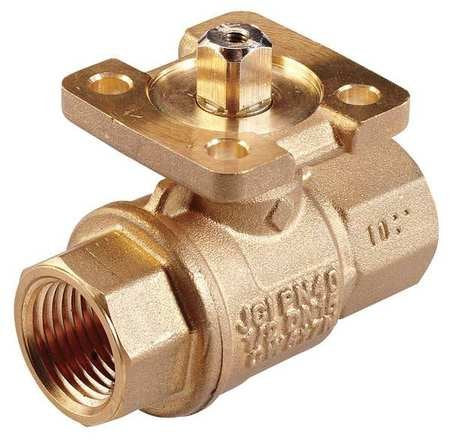

Johnson Controls VG1245CPH923BGA Two-Way Stainless Steel Trim NPT Ball Valve

Product Description

The Johnson Controls VG1245CPH923BGA is a precision-engineered two-way stainless steel trim NPT ball valve designed to control the flow of hot or chilled water and, in certain models, low-pressure steam within HVAC systems. Compatible with a range of Johnson Controls actuators, this valve ensures responsive and reliable system performance.

• Optimized for both on/off and floating control
• Compatible with VA9104, M9106, M9109, and M9100 Series Non-Spring-Return Actuators
• Also works seamlessly with VA9203 and VA9208 Series Spring-Return Electric Actuators

Product Highlights

Constructed from forged brass, the valve body offers a high static pressure rating of 580 psig, making it ideal for demanding applications. Its versatility is enhanced by availability in sizes from 1/2 inch through 2 inches.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: VG1245CPH923BGA

Technical Specifications

• Type: Two-Way Stainless Steel Trim NPT Ball Valve
• Material: Forged Brass
• Pressure Rating: 580 psig
• Control Type: On/Off, Floating, Proportional
• Actuator Compatibility: VA9104, M9106, M9109, M9100 Series Non-Spring-Return; VA9203, VA9208 Series Spring-Return
