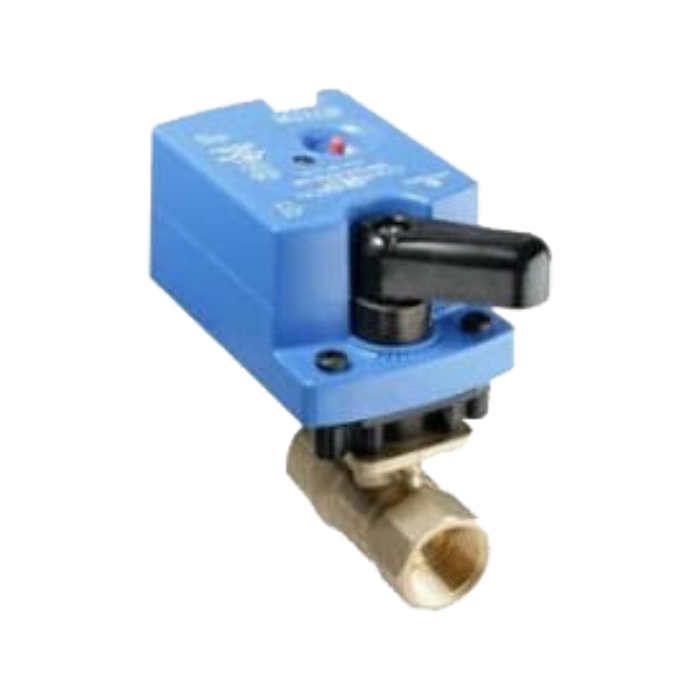

Johnson Controls VG1245CN+9T4IGA Two-Way Stainless Steel Trim NPT Ball Valve Non-Spring-Return Electric Actuator

Product Description

The Johnson Controls VG1245CN+9T4IGA Ball Valve is designed to regulate the flow of hot or chilled water and low-pressure steam in HVAC systems. This two-way stainless steel trim NPT ball valve is equipped with the model VA9104-IGA-3S non-spring-return electric actuator.

• Static pressure rating of 580 psig
• Available sizes: 1/2 through 2 inches
• On/off, floating, or proportional control

Product Highlights

This valve ensures efficient flow regulation for HVAC systems. It is compatible with various Johnson Controls electric actuators.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• Brand: Johnson Controls

Technical Specifications

• MPN: VG1245CN+9T4IGA
• Type: Two-way ball valve
• Body: Forged brass
• Pressure Rating: 580 psig
• Actuator: Non-spring-return electric
• Sizes: 1/2 through 2 inches
• Control: On/off, floating, proportional
• Applications: HVAC systems
