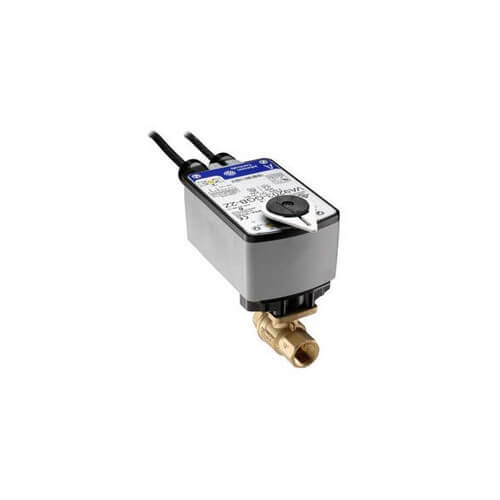

Johnson Controls VG1245CN+923AGA Two-Way Stainless Steel Trim NPT Ball Valve

Product Description

The Johnson Controls VG1245CN+923AGA is a two-way stainless steel trim NPT ball valve. This valve is designed to regulate the flow of hot or chilled water and, in some models, low-pressure steam in HVAC systems. The model includes the VA9203-AGA-2Z open non-spring-return electric actuator without a switch.

• Forged brass body with a 580 psig static pressure rating
• Suitable for on/off, floating, or proportional control
• Compatible with Johnson Controls VA9104, M9106, M9109, M9100 Series Non-Spring-Return, as well as VA9203, VA9208 Series Spring-Return Electric Actuators

Product Highlights

Ball Valves regulate the flow of hot or chilled water and low-pressure steam in HVAC systems. Available sizes range from half an inch to two inches.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1245CN+923AGA
• Product Type: Valve

Technical Specifications

• Flow Capacity: 11.7 Cv
• Power Requirements: 24 VAC +/- 20%, VDC +/- 10%
• Electrical Connections: 48 inches 18 AWG Appliance Cable
• Material: Stainless Steel
• Body Pattern: 2-Way
• Actuator Type: Floating Point, On/Off
• Fail Safe Mode: Spring Return, Port A Open
• Connection Type: Threaded
• Fluid Temperature Range: -22°F to 212°F
