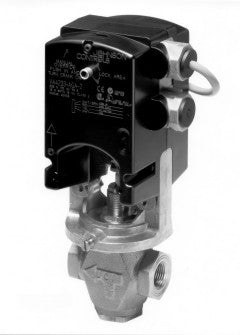

Johnson Controls VG7281ET+423BGC Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7281ET+423BGC is a globe valve assembly designed for HVAC systems. This two-way valve features a union sweat connection and is built with a bronze body and stainless steel stem. It includes a brass seat against a molded elastomeric disk, ensuring reliable performance. The valve is equipped with a direct mount electric actuator and has a spring return force of sixty-one in-lbs. It operates on twenty to thirty VAC for on/off control.

• Union sweat connection
• Direct mount electric actuator
• Static pressure rating of ANSI Class 250

Product Highlights

This valve is suitable for hot water, chilled water, glycol solutions, and steam applications. Its construction allows for efficient operation up to 250 degrees Fahrenheit. It includes an auxiliary switch with two SPDT contacts, providing additional control options.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7281ET+423BGC

Technical Specifications

• Service: Hot Water, Chilled Water, Glycol Solutions, Steam
• Closeoff Pressure: 345 psig
• Power Consumption: 12 VA
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 250 F (2 C to 121 C)
• Electrical Connection: 18 in. Cable with 18 AWG Wire Leads
• Actuator Operating Conditions: 32 F to 122 F (0 C to 50 C)
