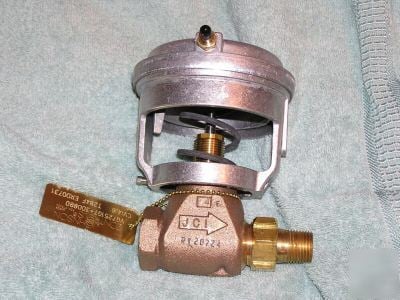

Johnson Controls VG7251GT+7152G Series VG7000 Model Brass Trim Globe Valve with Non-Spring-Return Actuator

Product Description

The Johnson Controls VG7251GT+7152G Series VG7000 globe valve is engineered for precise control of hot or chilled water and steam in HVAC systems. Manufactured by Johnson Controls, this valve is designed with a brass trim and features a VA-715x Series non-spring-return electric actuator.

• Control hot or chilled water and steam effectively
• 90 lb force for secure valve closure
• Operates on 24 VAC, 50/60 Hz, consuming 4.7 VA

Product Highlights

This valve ensures high performance under a static pressure rating of ANSI Class 250, suitable for both factory and field assembly.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: VG7251GT+7152G

Technical Specifications

• Valve Type: Globe Valve
• Material: Brass Trim
• Actuator Type: Non-Spring-Return Electric
• Pressure Rating: ANSI Class 250
• Voltage: 24 VAC
• Frequency: 50/60 Hz
• Power Consumption: 4.7 VA
