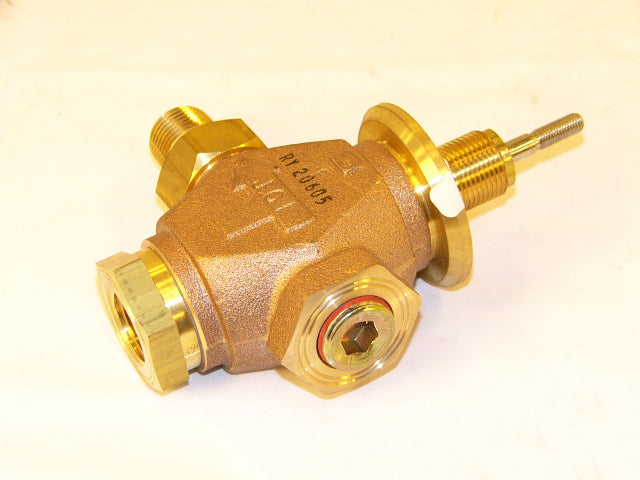

Johnson Controls VG7551CT+3008D Brass Trim Globe Valve with Pneumatic Actuator, 4-8 psig Spring Range

Product Description

The Johnson Controls VG7551CT+3008D Brass Trim Globe Valve with Pneumatic Actuator is designed to manage hot or chilled water, or saturated steam up to 38 psig. It fits VG7000 Series valves from 1/2 to 2 inches.

• Controls hot or chilled water
• Handles 38 psig saturated steam
• Static pressure rating: ANSI Class 250

Product Highlights

This valve is ideal for managing fluid temperatures ranging from 35 to 284 degrees Fahrenheit. The actuator has a rugged die-cast enclosure, and the valve can be assembled either in the factory or in the field. For those needing a positioner, the V-9502-90 can be added to the code number but is unavailable with the enclosed spring actuator.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7551CT+3008D

Technical Specifications

• Fluid Temperature: 35 to 284 degrees Fahrenheit
• Pressure Rating: ANSI Class 250
• Actuator Type: Pneumatic
• Valve Series: VG7000
• Valve Size: 1/2 to 2 inches
• Saturated Steam Handling: 38 psig
• Positioner Option: V-9502-90
