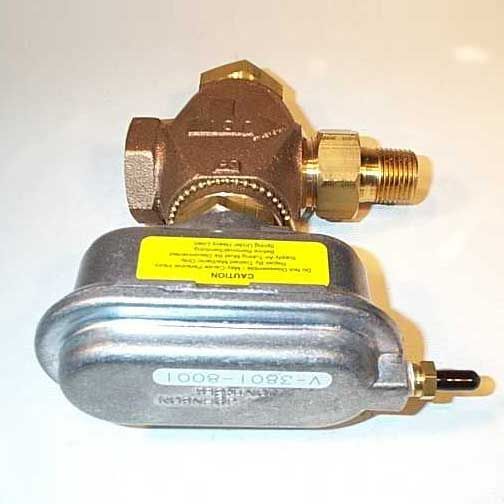

Johnson Controls VG7551ES+3801D Series VG7000 Model Globe Valve with Pneumatic Actuator 4-8 psig Spring Range

Product Description

The Johnson Controls VG7551ES+3801D is a reliable Series VG7000 Model Globe Valve. It features brass trim and a compact pneumatic actuator. Designed to control hot or chilled water or 15 psig saturated steam, it is ideal for precise fluid control in various HVAC applications.

• Compact design fits tight spaces
• Maximum supply air pressure: 25 psig
• Fluid temperature range: 35 to 248 degrees Fahrenheit

Product Highlights

This product's compact size makes it suitable for installation in confined spaces. It features a stainless steel valve stem and a cast bronze body for durability. The valve's static pressure rating conforms to ANSI Class 250 standards. Factory or field assembly is available.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7551ES+3801D

Technical Specifications

• Valve Size: 1/2
• Valve Connection: Union
• Piping Configuration: Angle
• Body Material: Bronze
• Valve Application: Steam, Water
• Max Pressure: 25 psi WSP
• Alias: VG7551ES3801D
• Weight: 3.00 lbs
