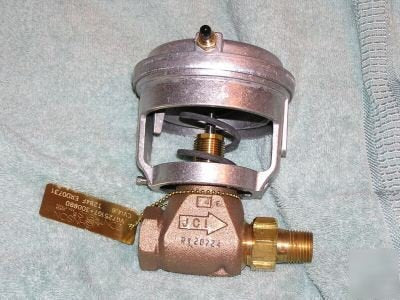

Johnson Controls VG7251GT+3008E Brass Trim Globe Valve with Pneumatic Actuator 9-13 psig Spring Range

Product Description

The Johnson Controls VG7251GT+3008E Brass Trim Globe Valve with Pneumatic Actuator is designed to control hot or chilled water and 38 psig saturated steam. This brass valve is part of the VG7000 Series and comes with a V-3000 Pneumatic Actuator. The valve is suitable for a range of fluid temperatures from 35 to 284 degrees Fahrenheit. It has a static pressure rating of ANSI Class 250.

• Rugged die-cast actuator enclosure
• Controls hot or chilled water and 38 psig saturated steam
• Suitable for a wide range of fluid temperatures

Product Highlights

The VG7251GT+3008E from Johnson Controls is ideal for HVAC systems and other applications requiring precise fluid control. The valve body allows for factory or field assembly, and optional add-ons can enhance functionality.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: VG7251GT+3008E
• Material: Brass
• Category: HVAC Controls
• Spring Range: 9 to 13 psig

Technical Specifications

• Fluid Temperature: 35 to 284 degrees Fahrenheit
• Pressure Rating: ANSI Class 250
• Actuator Enclosure: Rugged die-cast
• Valve Size: Fits VG7000 Series valves 1/2 through 2 inches
• Max Pressure: 38 psig saturated steam
• Optional Add-on: V-9502-90 Positioner (not with enclosed spring actuator)
