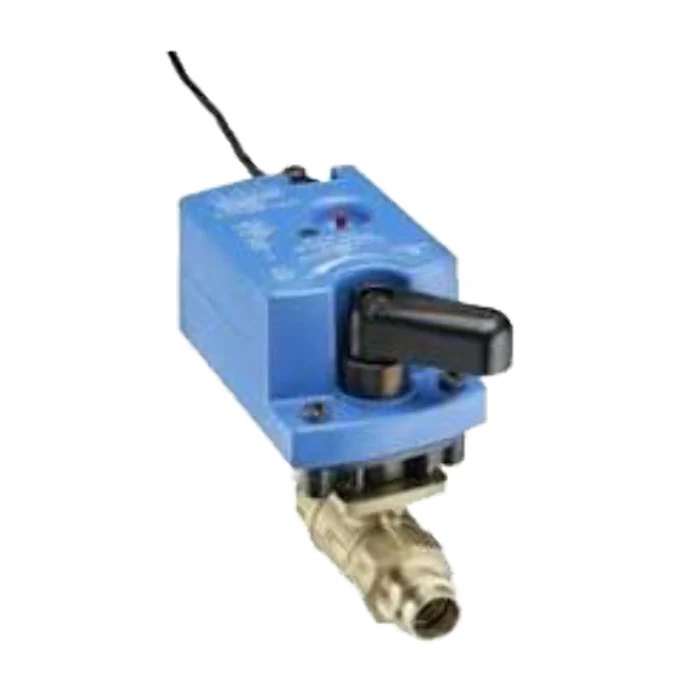

Johnson Controls VG1295AL+9A4GGA Ball Valve Assembly, 2 Way, 1/2 in.

Product Description

The Johnson Controls VG1295AL+9A4GGA is a ball valve assembly designed for efficient control in HVAC systems. This 2-way valve features a press end connection and is suitable for various fluids.

• Maintenance-free design
• High performance with a flow coefficient of 7.4 Cv
• Built from forged brass, stainless steel ball, and blowout-proof stem

Product Highlights

This valve operates in challenging conditions with a service life exceeding 200,000 full stroke cycles.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1295AL+9A4GGA

Technical Specifications

• Housing: NEMA 1, IP40
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution For HVAC Systems
• Power Consumption: 2.9 VA
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -4 F To 140 F (-20 C To 60 C)
• Electrical Connection: 48 in. Plenum Rated Cable
