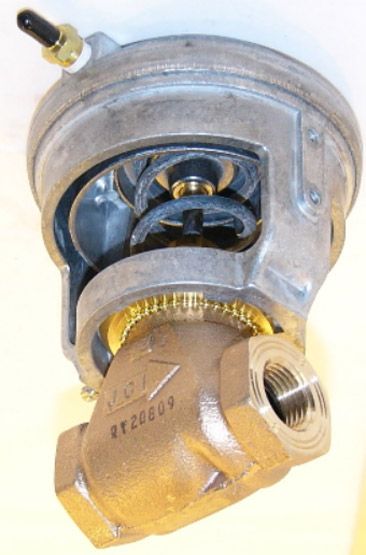

Johnson Controls VG7241CT+3008E Bronze Pneumatic Valve 1/2 Inch NPT

Product Description

The Johnson Controls VG7241CT+3008E is a 1/2 inch NPT bronze pneumatic valve designed for efficient flow control in HVAC systems. The valve operates with a 9-13 psi spring range and provides a maximum flow of 0.73 CV, making it suitable for both hot and chilled water applications or up to 38 psig saturated steam.

• Applicable for water and steam with temperatures ranging from 35 to 284 degrees Fahrenheit.
• ANSI Class 250 static pressure rating ensures durability and reliability under varying environmental conditions.
• Facility for optional positioner integration to enhance control accuracy.

Product Highlights

This valve features a rugged actuator with a die-cast enclosure, fitting seamlessly into the VG7000 Series. It's designed for straightforward factory or field assembly, enhancing versatility in application.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG72411CT+3008E
• Model: VG7000

Technical Specifications

• Valve Size: 1/2 inch
• Valve Connection: NPT
• Body Material: Bronze
• Maximum Pressure: 15 psi WSP, 125 psi WOG
• Weight: 4.00 lbs
