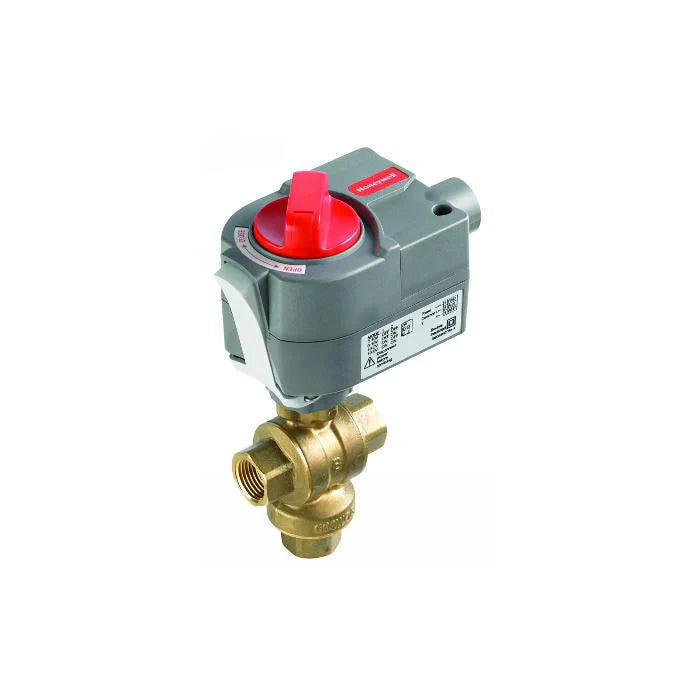

Honeywell VBN3AJPA3000 Ball Valve Assembly, 3 Way, 1/2 in NPT

Product Description

The Honeywell VBN3AJPA3000 is a three-way ball valve assembly designed for efficient flow control in HVAC systems. This valve features NPT threaded connections and is constructed from nickel chrome-plated brass, ensuring durability. It is equipped with a direct coupled actuator that consumes six VA of power.

• Characterized control valve with an 8 Cv rating.
• Non-spring return fail in place mechanism for reliability.
• Field configurable for normally open or normally closed operation.

Product Highlights

This valve is suitable for hot and chilled water systems with glycol solutions. The actuator is versatile, allowing for installation in various orientations.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VBN3AJPA3000

Technical Specifications

• Housing: NEMA 2, IP40
• Service: Hot and chilled water with glycol solutions up to 50%
• Power Consumption: 6 VA
• Flow Characteristic: Equal percentage
• Operating Conditions: -4 F to 131 F (-20 C to 55 C)
• Electrical Connection: Field wiring 18 to 20 AWG to screw terminals, under removable access cover
• Operating Temperature: -22 F to 250 F (-30 C to 121 C)
• Maximum Safe Operating Rating: 360 psi
