Product Description

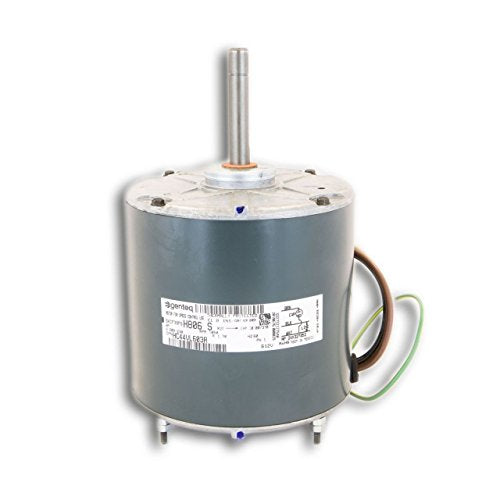

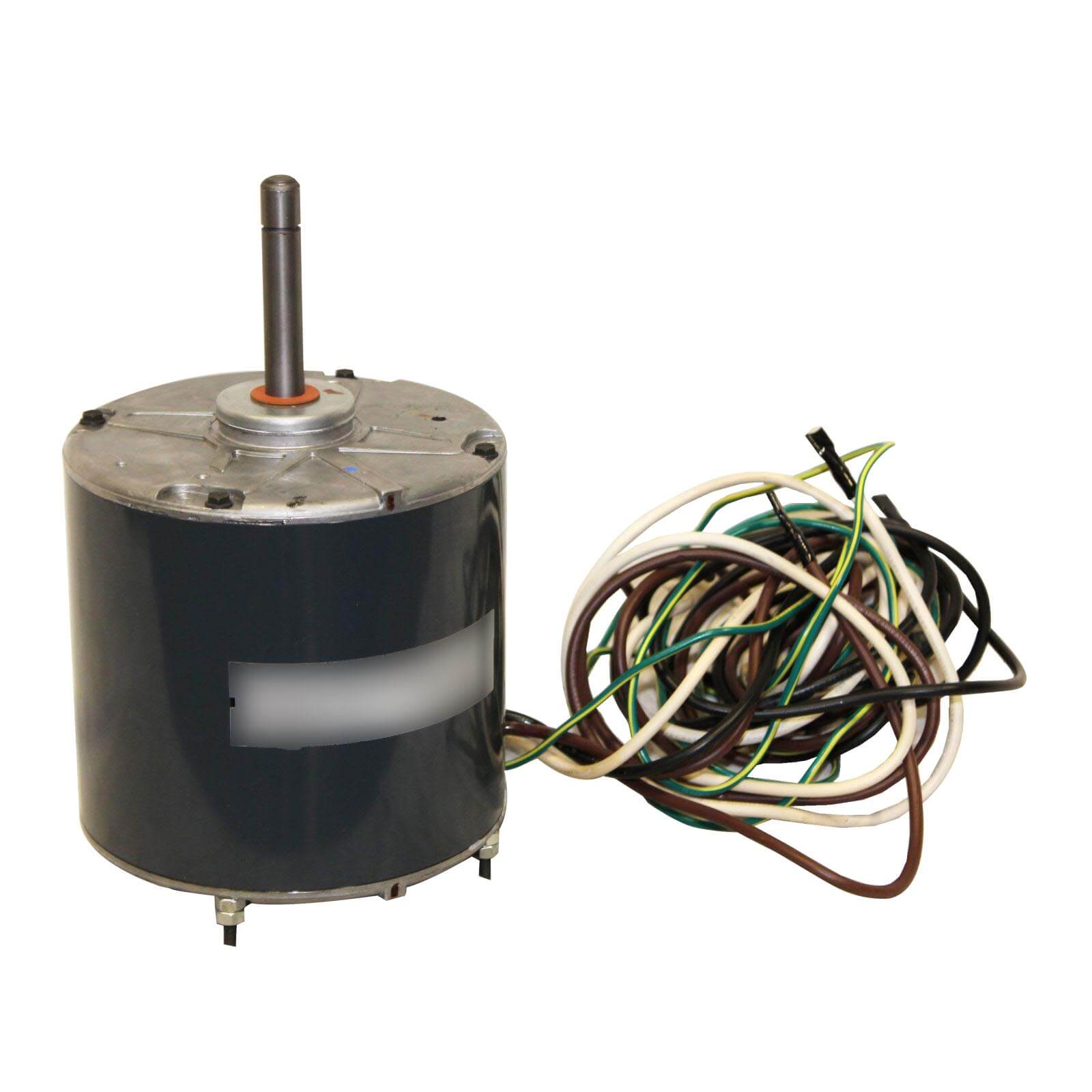

The Carrier HC44VL603 is a condenser fan motor designed for efficient cooling and ventilation applications. This motor operates at one half horsepower and runs on 208 to 230 volts, making it suitable for various HVAC systems. It provides a reliable performance at 1075 RPM, ensuring effective air circulation.
- Genuine OEM Carrier part
- Drop-in replacement for various models
- Automatic reset thermal overload protection
Product Highlights
The HC44VL603 motor is built to meet industry standards and is capable of handling demanding tasks in HVAC systems. Its robust construction and design allow it to operate in harsh environments, maintaining performance and reliability over time.
Product Information
Standard Information
-
Brand: Carrier
-
Type: Electric Motor
Technical Specifications
-
Voltage: 208-230 VAC
-
Horsepower: 1/2 HP
-
Full Load Amps: 1.8
-
Rotation: Clockwise
-
RPM: 1075
-
Shaft Diameter: 1/2 inch
-
Shaft Length: 3.2 inches
-
Weight: 20.00 lbs
-
Dimensions: 5.7 inches width x 9.5 inches height
