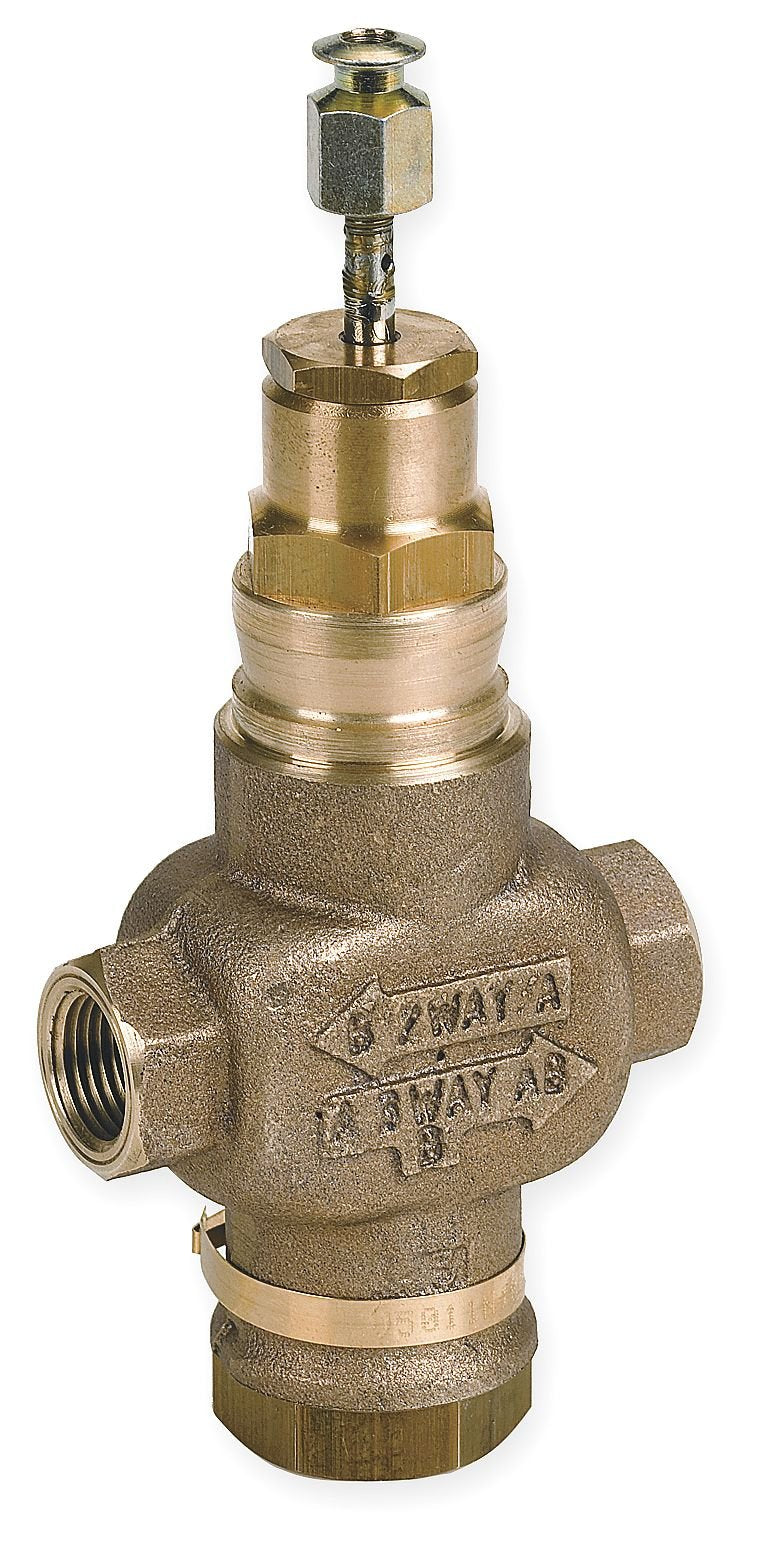

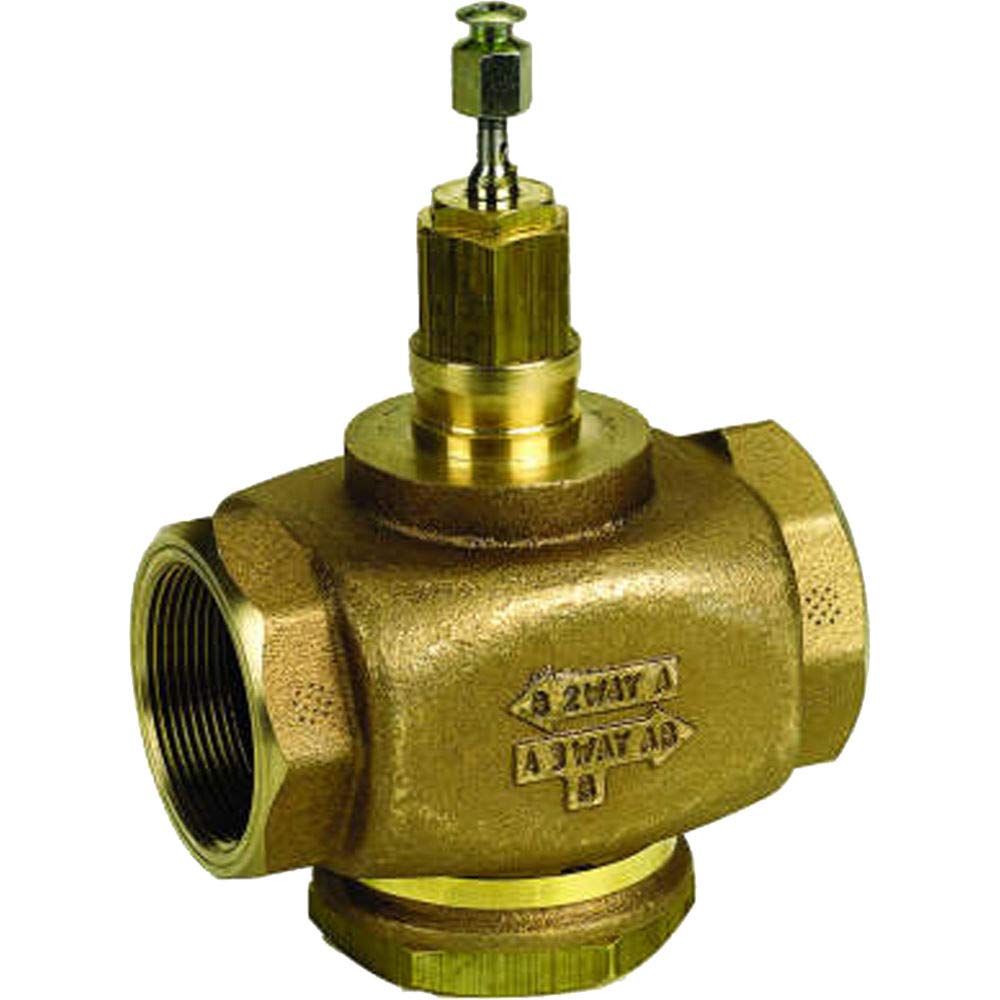

Honeywell V5011N1016 1/2 2-Way F-NPT Globe Valve 1.16 Cv Water Glycol Steam

Product Description

The Honeywell V5011N1016 1/2 inch 2-Way F-NPT Globe Valve is designed for regulating water, glycol solutions, or steam in heating and cooling applications. Crafted for reliability and durability, this valve offers superior flow control and is suited for both commercial and industrial use.

• Direct acting with a flow coefficient (Cv) of 1.16.
• Constructed from high-quality bronze for long-term usage.
• Compatible with Honeywell pneumatic and electric actuators for flexible installation options.

Product Highlights

Featuring a red brass body and stainless steel stem, this globe valve promises minimal leakage and optimal performance. Its straightforward, threaded design allows for easy installation and maintenance.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V5011N1016

Technical Specifications

• Size: 1/2 inch
• Type: Female NPT
• Material: Bronze
• Max Pressure: 250 psi for water, 15 psi for steam
• Operating Temperature Range: 36F to 248F
• Leakage: ≤0.05% of Cv
• Dimensions: 6-5/8 in. high x 3-1/4 in. wide x 1-9/16 in. deep
