Siemens 599-02068 Valve 3-Way Mix Linear 1/2 In FxF 2.5 Cv 8-13 psi Spring Range

Product Description

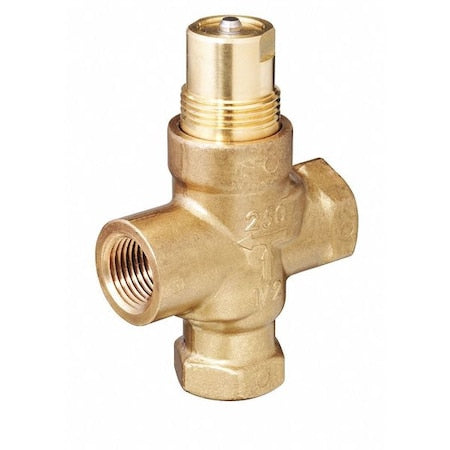

The Siemens 599-02068 Valve 3-Way Mix is a durable solution for your HVAC systems. It offers precise control of hot and cold water flow, ensuring optimal temperature regulation in commercial and industrial buildings.

• Direct-coupled universal bonnet
• 1/2-inch size
• 2.5 Cv linear actuator

Product Highlights

This valve features a brass body and trim, designed to work with pneumatic or electronic actuators. It requires no tools for installation and fits seamlessly into existing systems for easy setup and maintenance.

Product Information

Standard Information

• Brand: Siemens Building Technology
• MPN: 599-02068

Technical Specifications

• Body Pattern: 3-Way
• Flow Capacity (Cv): 2.5
• Connection Size: 1/2 inches
• Connection Type: FNPT x FNPT
• Maximum Temperature (F): 250°F
• Minimum Temperature (F): 20°F
• ANSI Leakage Class: IV (0.01% of Cv)
• Material: Brass
• Pressure Rating: ANSI Class 250
