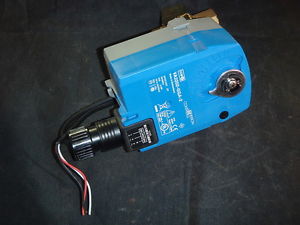

Johnson Controls VG1241AD+943BGB Two-Way Brass Ball Valve with Electric Actuator

Product Description

The Johnson Controls VG1241AD+943BGB Ball Valve is engineered for precise flow control in HVAC systems. This brass valve, compatible with sizes half an inch through two inches, operates under hot, cold, or low-pressure steam conditions. Its design seamlessly integrates with Johnson Controls electric actuators for efficient, responsive operation.

• Direct compatibility with VA9104, M9106, M9109, and M9100 Series Non-Spring-Return Actuators
• Also works with VA9203 and VA9208 Spring-Return Electric Actuators
• Ideal for on/off, floating, or proportional control applications

Product Highlights

This valve system is part of the VG1000 Series and is crucial for regulated environments demanding precise temperature and flow controls.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1241AD+943BGB

Technical Specifications

• Type: Two-Way Brass Ball Valve
• Material: Forged Brass
• Pressure Rating: 580 psig static
• Connection Type: NPT End Connections
• Size Range: 0.5 to 2 inches (DN15 to DN50)
• Compatible Actuators: VA9104, M9106, M9109, M9100, VA9203, VA9208
