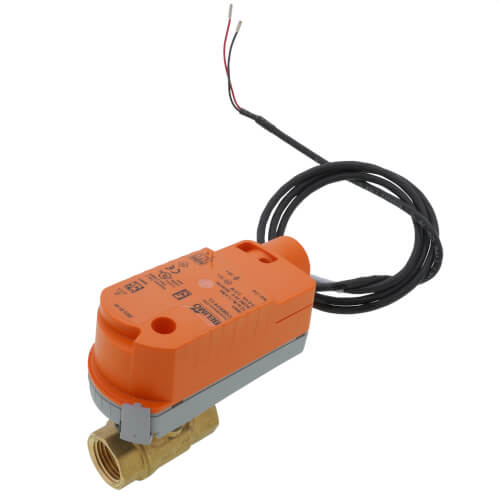

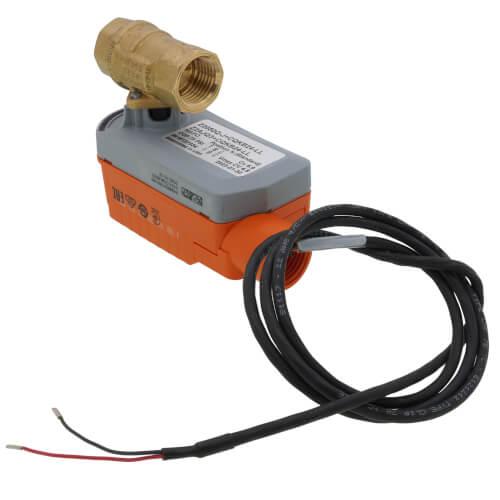

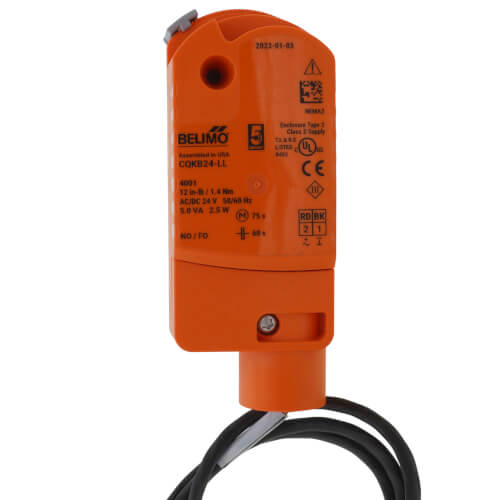

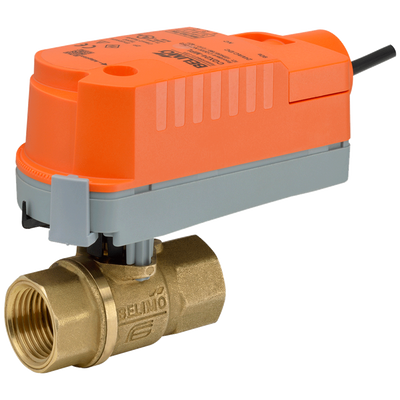

Belimo Z2050Q-J+CQKB24-LL ZoneTight 0.5 Inch 2-Way Control Valve 24V

Product Description

The Belimo Z2050Q-J+CQKB24-LL is a 2-way control valve designed for commercial HVAC systems. This control valve features a 0.5-inch valve size and operates with a 24V electronic fail-safe actuator. It is suitable for applications requiring precise control of chilled or hot water, up to 60% glycol, and ensures a high degree of reliability and performance.

• ZoneTight technology
• 5.9 Cv value
• On/Off control

Product Highlights

The Belimo Z2050Q-J+CQKB24-LL provides reliable control for HVAC systems in commercial buildings. Its compact design allows installation in confined spaces without needing tools. The valve's advanced features ensure high performance and user convenience.

Product Information

Standard Information

• Brand: Belimo
• MPN: Z2050Q-J+CQKB24-LL

Technical Specifications

• Valve Size: 0.5 inches
• Flow Capacity (Cv): 5.9
• Pattern: 2-way
• Fluid: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Voltage AC/DC: 24V
• Control Type: On/Off
• Actuator Type: Electrical fail-safe
• Angle of Rotation: 90 degrees
• Degree of Protection: IP40 NEMA 2
• Running Time (Motor): 75 seconds / 90 degrees
• Running Time (Fail-safe): less than 60 seconds
• Electrical Connection: Cable
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 2.5 W
• Pressure Independent: No
• Trim: Chrome plated brass
• Country of Origin: United States
