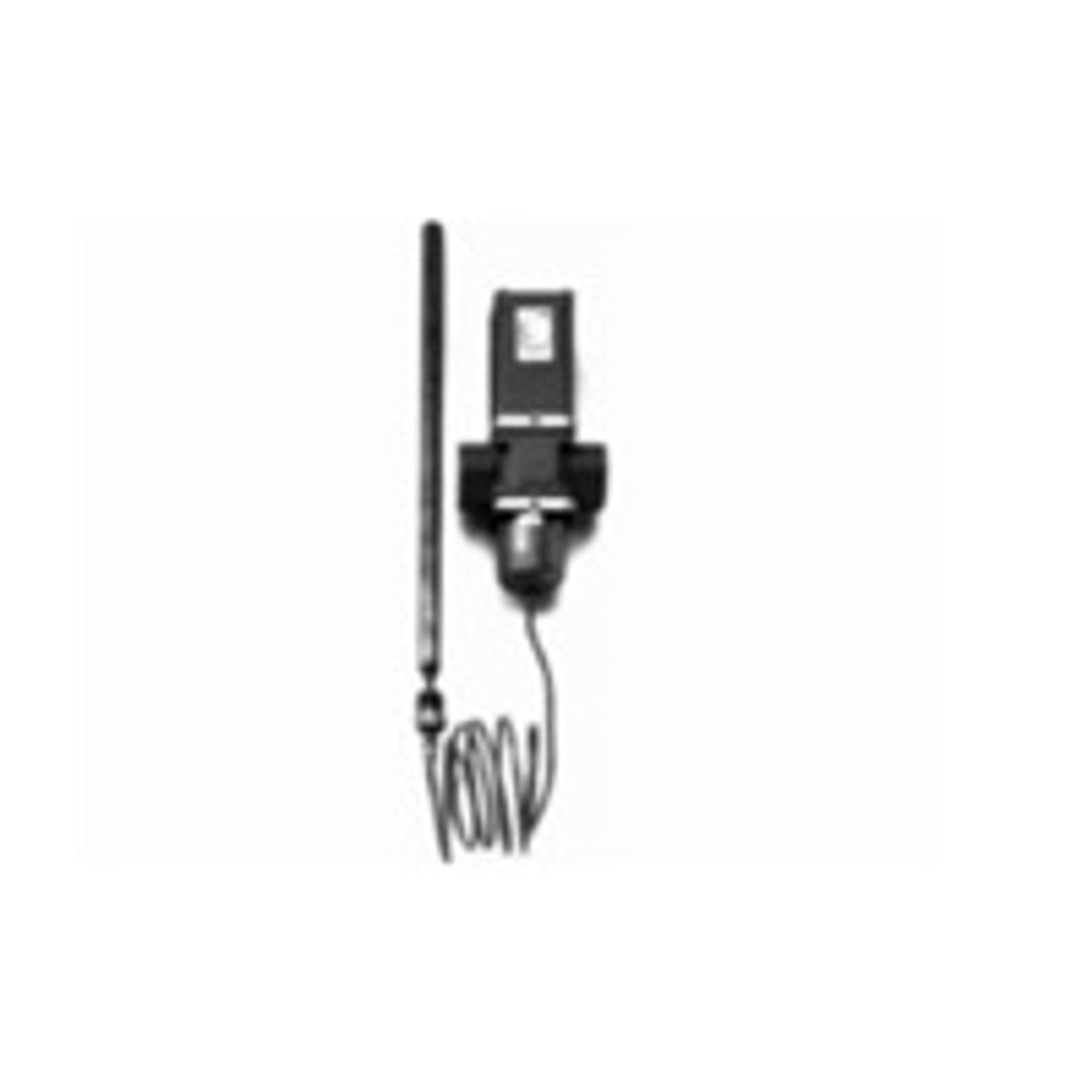

Johnson Controls V47AB-3C Temperature Actuated Water Valve 115-180F

Product Description

The Johnson Controls V47AB-3C is a temperature actuated water valve designed to regulate the flow of water or glycol, maintaining a desired temperature. This valve operates within a temperature range of 115 to 180 degrees Fahrenheit.

• No close fitting sliding parts in water passages
• Spring does not contact cooling water
• Easy manual flushing if needed

Product Highlights

This valve is ideal for temperature control in industrial settings. It is used in systems like fluid handling and temperature regulation to ensure optimal performance. The V47AB-3C features a sturdy construction and design, minimizing water hammer and chatter.

Product Information

Standard Information

• Item Number: V47AB-3C
• Brand: Johnson Controls

Technical Specifications

• Type: 2 Way
• Connection: NPT
• Port (In.): 1/2 inches
• Set Points: 115 Degrees F to 180 Degrees F
• Application: Temperature Regulation
• For Use With: Air Coolers, Fluid Coolers, Heat Exchangers, Oil Coolers
• Design Pressure: 320 psig
