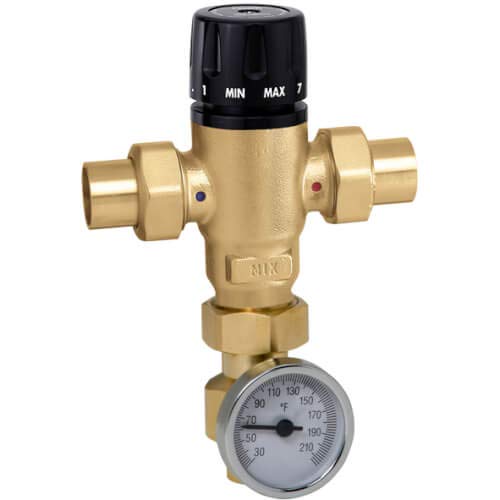

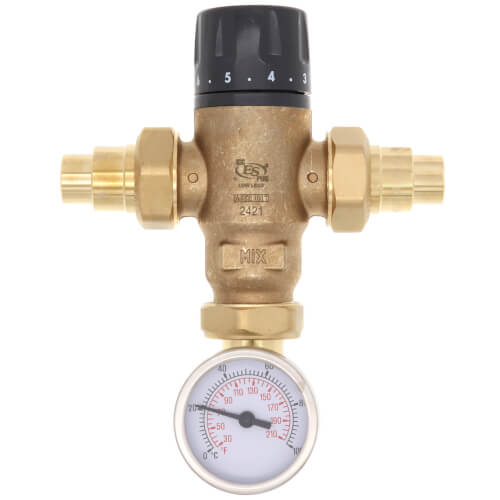

- Thermostatic and Pressure Balanced Mixing Valve
- Type Adjustable, Thermostatic
- Nominal Size 1/2 Inch
- End Connection Soldered x Soldered x Soldered
- End to End Distance 5-7/8 Inch
- Base to Inlet Dimension 7 Inch
- Inlet to Mixing Outlet Dimension 7 Inch
- Body Material Brass
- Flow Rate 1 GPM
- Set Temperature Range 85 to 150 Deg F
- Temperature Rating 200 Deg F
- Pressure Rating 200 PSI
- Inclusions/Features Check Valve, Stainless Steel Spring, EPDM Seal, PPO Shutter
- Application Domestic Hot Water, Hydronic and Radiant Heating System
- Applicable Standard ASSE 1017, CSA B125.3, NSF/ANSI 372, IPC, IRC, UPC, NPC
- Flow Capacity 3 CV
- Maximum Differential Pressure 20 PSI
- Maximum Inlet Pressure Ratio 2:1 (H/C or C/H)
