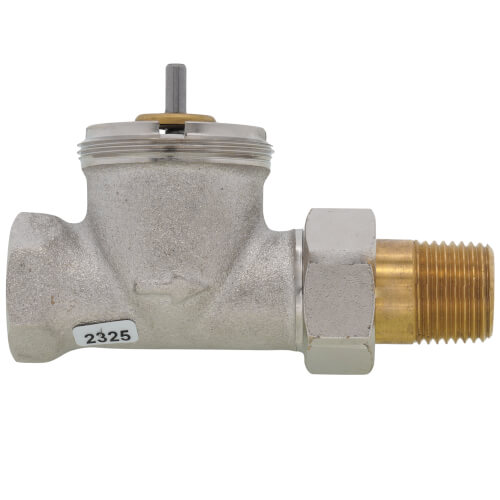

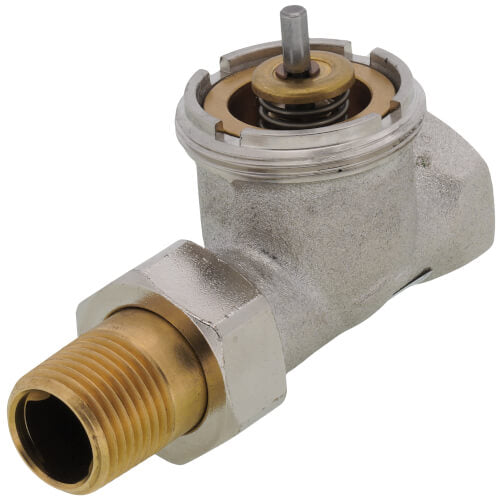

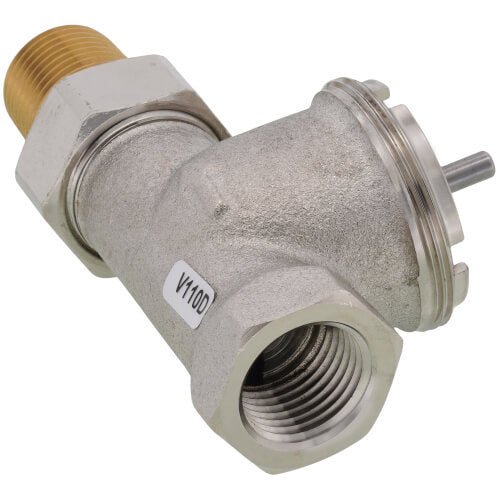

Honeywell Home V110D1000 Thermostatic Radiator Valve 1/2 Inch Straight High Capacity

Product Description

Explore the efficiency of the Honeywell Home V110D1000 Thermostatic Radiator Valve, designed to modulate the flow of hot water or steam in high capacity systems. This valve is engineered with precision to control room temperature effectively, using Honeywell T104 Actuators.

• Robust nickel-plated bronze body enhances longevity and performance.
• Easy maintenance with replaceable parts available without removing the valve from the system.
• Compliant with ASHRAE Standard 102-1989, ensuring top industry standards.

Product Highlights

Featuring a straight body pattern and 1/2-inch FNPT x MNPT Union connections, this valve supports a maximum pressure of 150 psi for hot water and 15 psi for steam. Its design accommodates high temperature operation up to 248 degrees Fahrenheit.

Product Information

Standard Information

• Connection Type: FNPT x MNPT Union
• Body Material: Nickel Plated Bronze

Technical Specifications

• Maximum Operating Pressure: 150 psi (hot water), 15 psi (steam)
• Temperature Range: Up to 248 degrees Fahrenheit
• Valve Type: Thermostatic Radiator Valve
• Size: 1/2 inch
• Capacity: High - 127,000 BTU/hr (steam)
• Flow Capacity (Cv): 4.6
