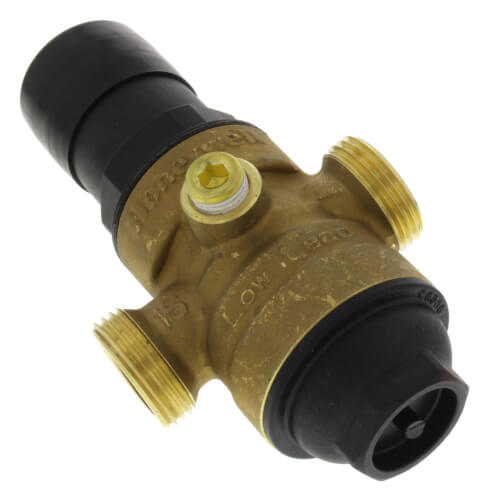

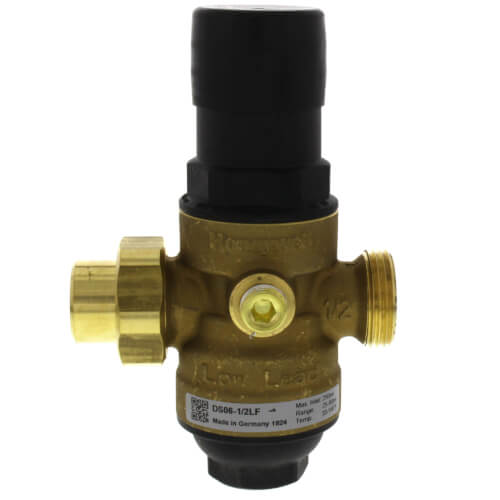

Resideo Braukmann DS06-100-SUT-LF Pressure Reducing Valve 1/2 Inch Single Union NPT DialSet

Product Description

The Resideo Braukmann DS06-100-SUT-LF is a 1/2 inch Pressure Reducing Valve, designed for single-union NPT applications. This valve is essential for maintaining consistent pressure levels in various systems including industrial and commercial setups.

• Pressure adjustment range from 25 to 90 PSI
• Lead-free construction, ensuring safety and compliance
• Easy installation with single-union NPT configuration

Product Highlights

Constructed with robust materials, the Resideo Braukmann DS06-100-SUT-LF offers reliable performance with its non-corroding unitized cartridge. This feature simplifies maintenance as all working parts are contained and easily replaceable. The built-in strainer further enhances its usability by reducing the need for frequent cleanings.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: DS06-100-SUT-LF

Technical Specifications

• Pressure Range: 25 to 90 PSI
• Maximum Inlet Pressure: 250 PSI
• Connection Type: Female NPT
• Material: Bronze
• Approvals: ASSE 1003, IAPMO, CSA
