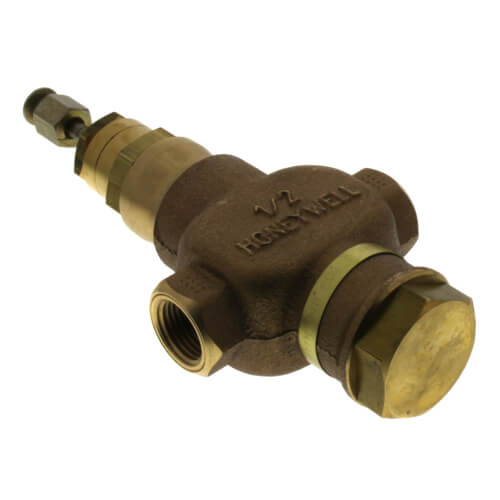

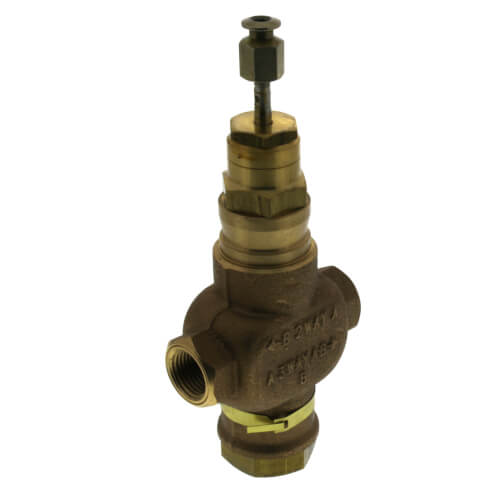

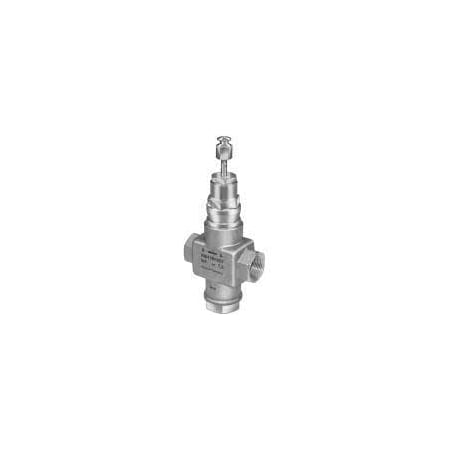

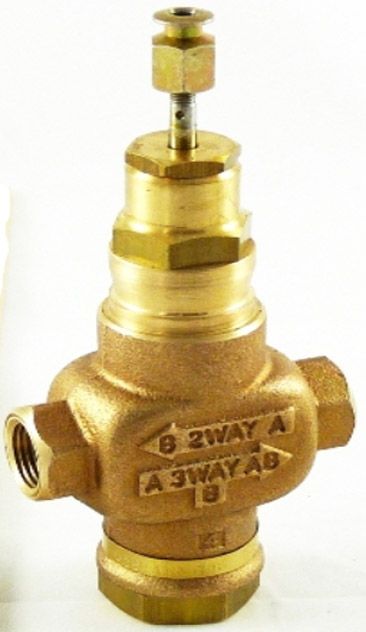

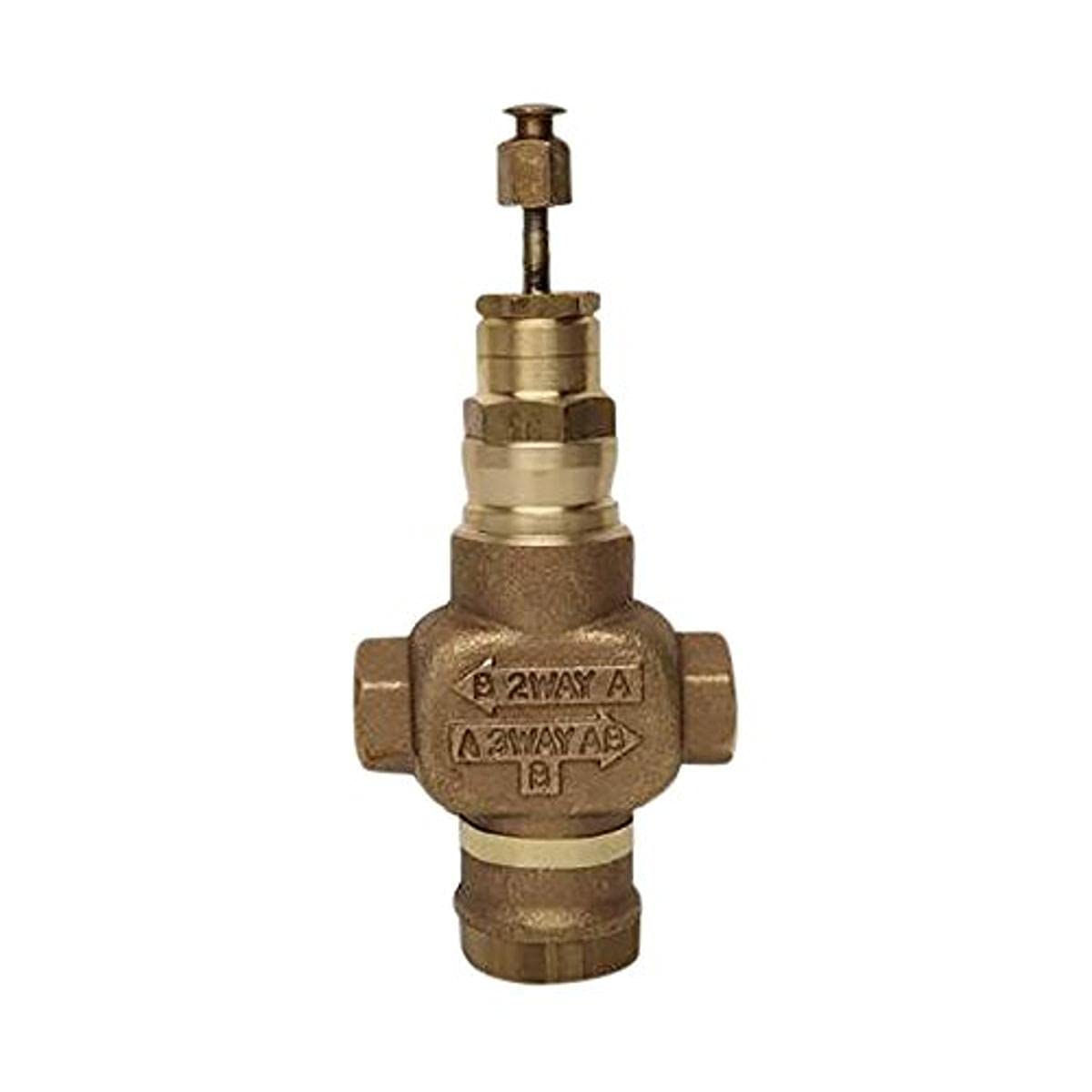

Honeywell V5011N1040 1/2 Inch Two-Way Globe Valve NPT 4.7Cv

Product Description

The Honeywell V5011N1040 is a 1/2 inch two-way globe valve designed for heating and cooling systems. It manages steam, water, and glycol solutions up to 50 percent. The valve is suitable for two-position or modulating control systems.

• Direct and reverse acting
• Spring-loaded, self-adjusting packing
• Compatible with electric and pneumatic actuators

Product Highlights

This Honeywell valve features a robust design that ensures precise flow control, making it suitable for various applications. The stainless steel stem and trim prevent corrosion, enhancing durability.

Product Information

Standard Information

• Valve Type: Globe Valve
• Connection Type: Female NPT

Technical Specifications

• MPN: V5011N1040
• Body Material: Bronze
• Seat Material: Stainless Steel
• Stem Material: Stainless Steel
• Pipe Size: 1/2 inch
• Maximum Pressure: 15 psi WSP, 250 psi WOG
• Flow Capacity (Cv): 4.7
• Temperature Range: 36 F to 248 F
• Weight: 2.66 lbs
