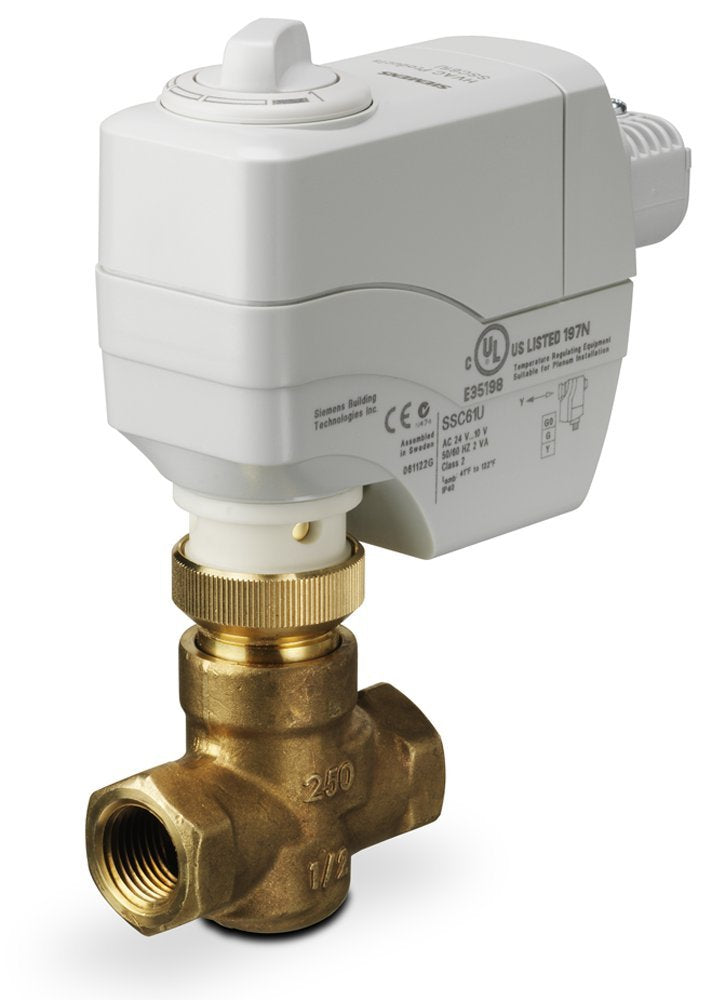

Siemens 261-02032 Valve Assembly 0.63 Cv Two-Way Normally Open

Product Description

Engineered for professional-grade use in HVAC systems, the Siemens Powermite 599 MT Series Valve Assembly, model 261-02032, is a top choice for streamlined operations. This product from Siemens, a trusted name in control technology, integrates an electronic actuator designed to perform under significant electrical specifications, including a 24 volts AC and 0 to 10 volts modulating control signal.

• Optimized for use in systems requiring precise flow control.
• Features robust brass trim and durable female by female connections.
• Designed with ANSI Leakage Class IV, ensuring minimal leakage and superior performance.

Product Highlights

This valve assembly is built to control water flow with precision in HVAC systems, utilizing a 0.63 Cv flow rate and suitable for both hot or chilled water applications.

Product Information

Standard Information

• Brand: Siemens
• MPN: 261-02032
• Power Requirements: 24 volts AC
• Control Signal: Modulating 0 to 10 Volts

Technical Specifications

• Connection Type: Female by Female NPT
• Valve Size: 1/2 inch
• Body Material: Brass
• Fail-Safe Mode: Fail-in-Place (non-spring return)
• Flow Capacity: 0.63 Cv
