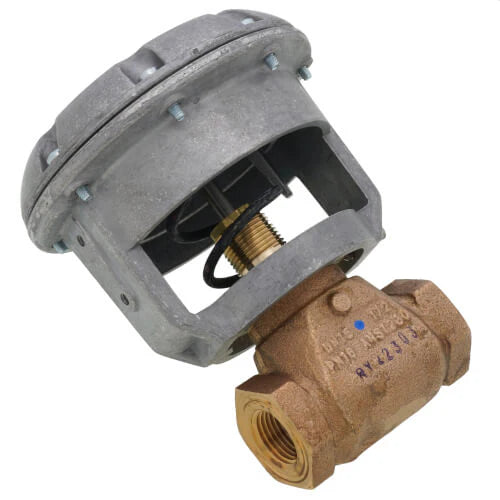

Johnson Controls VG7241CT+3003E Brass Trim Globe Valve with Pneumatic Actuator 9-13 psig Spring Range

Product Description

The Johnson Controls VG7241CT+3003E is a brass globe valve with a V-3000 pneumatic actuator. It is designed to manage hot or chilled water systems and 38 psig saturated steam. It is part of the VG7000 Series and features a rugged die-cast enclosure.

• Rugged die-cast actuator enclosure
• Controls hot or chilled water, 38 psig saturated steam
• Factory or field assembly

Product Highlights

This globe valve is suitable for hot or chilled water systems, as well as saturated steam applications. It features a brass trim and can handle fluid temperatures from 35 to 284 degrees Fahrenheit. The valve body has a static pressure rating of ANSI Class 250.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7241CT+3003E
• Category: HVAC Actuators and Valves

Technical Specifications

• Actuator Type: Pneumatic
• Connection Type: Threaded
• Flow Capacity (Cv): 0.73
• Body Pattern: 2-Way
• Spring Range: 3 to 6 psig
• Fluid Temperature Range: 35°F to 284°F
• Static Pressure Rating: ANSI Class 250
• Close Off Pressure: 191 psi
