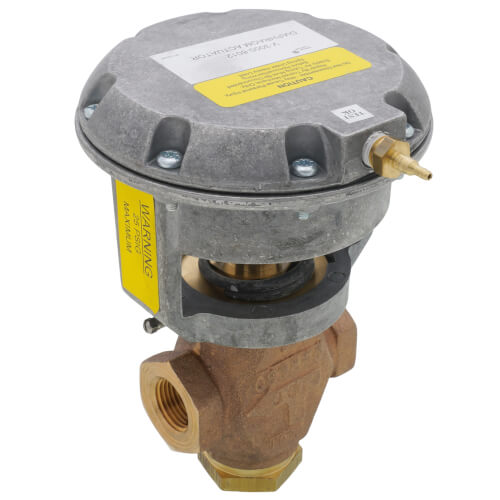

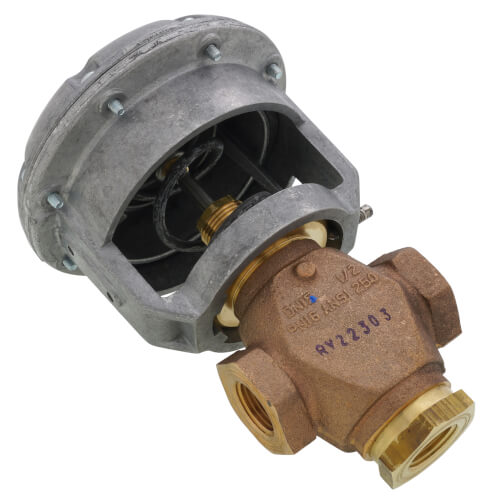

Johnson Controls VG7842GT+3008D Globe Valve Assembly, 3 Way 1/2 in.

Product Description

The Johnson Controls VG7842GT+3008D is a globe valve assembly designed for industrial fluid temperature control. This 3-way valve features a NPT connection measuring one half inch, ensuring compatibility with various piping systems.

• Flow capacity rated at 4.6 cubic feet per minute.
• Pneumatic actuator with a pressure rating of 4 to 8 pounds per square inch.
• Constructed from durable materials, including a bronze body and stainless steel stem.

Product Highlights

The VG7842GT+3008D is ideal for hot water, chilled water, and steam applications within HVAC systems. Its compact size makes it suitable for tight spaces and retrofitting into existing systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7842GT+3008D

Technical Specifications

• Flow Characteristic: Linear
• Closeoff Pressure: 192/68 psig
• Operating Conditions: 35 F to 248 F (2 C to 120 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Body Material: Bronze
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, Steam
• Housing: Die-Cast Aluminum
• Dimensions: Length - 4.9 inches, Width - 7.35 inches, Height - 4.7 inches
