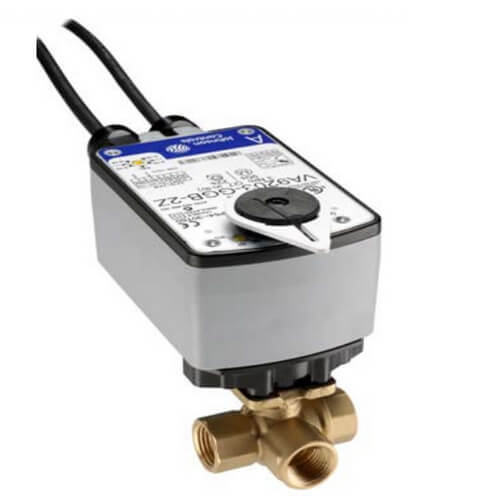

Johnson Controls VG1841AF+923BGA Three-Way NPT Ball Valve w/ VA9203 Spring-Return Actuator

Product Description

The Johnson Controls VG1841AF+923BGA model is a three-way NPT ball valve with a VA9203 spring-return electric actuator. Designed for regulating hot or chilled water, and some models handle low-pressure steam in HVAC systems. This valve assembly includes a durable forged brass body, offering reliable performance and a static pressure rating of 580 psig.

• Flow capacity: 2.9 Cv
• Operates with 24 VAC +/- 20% or VDC +/- 10%
• Fitted with a 48 inches 18 AWG appliance cable

Product Highlights

This three-way ball valve by Johnson Controls is engineered for HVAC applications, integrating simple electrical connectivity and reliable flow control. Ideal for controlling water and steam flow within HVAC setups, ensuring optimum performance and longevity.

Product Information

Standard Information

• Manufacturer: Johnson Controls, Inc
• Brand: Johnson Controls
• MPN: VG1841AF+923BGA

Technical Specifications

• Material: Brass
• Valve Size: 1/2 inches
• Torque: 27 lb-in
• Body Pattern: 3-Way
• Actuator Type: On/Off, 24V
• Fail Safe Mode: Spring Return, Port A Open
• Connection Type: Threaded
• Flow Capacity (Cv): 2.9
• Fluid Temperature Range: 23 to 203 degrees Fahrenheit
• Shipping Dimensions: Depth: 5 inches, Width: 5 inches, Height: 3 inches
