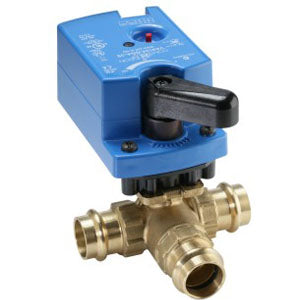

Johnson Controls VG1841AL+9A4GGA Three-Way Brass Trim Ball Valve with Electric Actuator

Product Description

The Johnson Controls Model VG1841AL Three-Way Plated Brass Trim NPT End Connections Ball Valve with Model VA9104-GGA-2S Non-Spring-Return Electric Actuator is engineered for precision flow control of hot or chilled water and low-pressure steam in HVAC systems. Ideal for applications demanding reliable performance and long-term durability.

• Direct compatibility with Johnson Controls Electric Actuators including VA9104, M9106, M9109, and M9100 Series.
• High static pressure rating up to 580 psig.

Product Highlights

This valve's robust forged brass body and advanced design ensure optimal performance and resistance to wear and tear in demanding HVAC environments. It supports on/off, floating, or proportional control modes.

Product Information

Standard Information

• Valve Type: Three-Way Brass Ball Valve
• Control Type: Non-Spring Return Electric Actuator

Technical Specifications

• Connection: NPT threaded ends
• Flow Capacity: 7.4 Cv
• Pressure Rating: 580 psig static
• Electrical Requirement: 24 VAC +25%/-20%, Class 2, SELV
