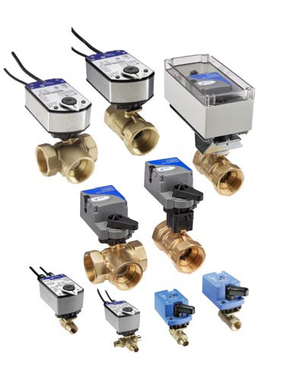

Johnson Controls VG1841AF+9A4GGA Valve Assembly with Electric Actuator

Product Description

Experience streamlined flow control in your HVAC systems with the Johnson Controls VG1841AF+9A4GGA Valve and Actuator Assembly. This assembly incorporates a three-way brass valve and a non-spring return electric actuator, designed to effectively manage the flow of hot or chilled water, and for certain models, low-pressure steam. Ideal for diverse HVAC applications, this product ensures reliability through its high-grade forged brass body.

• Efficiently controls air/water flow with 2.9 Cv flow capacity.
• Compatible with 24 VAC, providing flexible power options.
• Easy installation with NPT threaded connections.

Product Highlights

Built from durable forged brass, the valve boasts a 580 psig static pressure rating, simplifying its integration into different HVAC systems. The accompanying VA9104-GGA-2S actuator allows for precise control, enhancing system performance.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1841AF+9A4GGA

Technical Specifications

• Body Material: Forged Brass
• Control Type: On/Off, Floating, Proportional
• Actuator Type: Non-Spring Return Electric
• Maximum Pressure: 580 psig
• Connection Type: NPT Threaded
• Flow Capacity: 2.9 Cv
