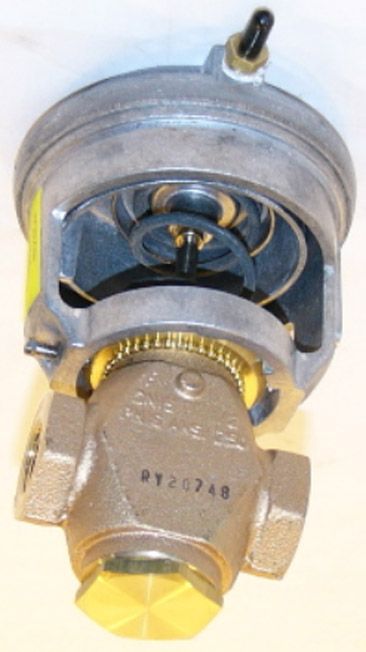

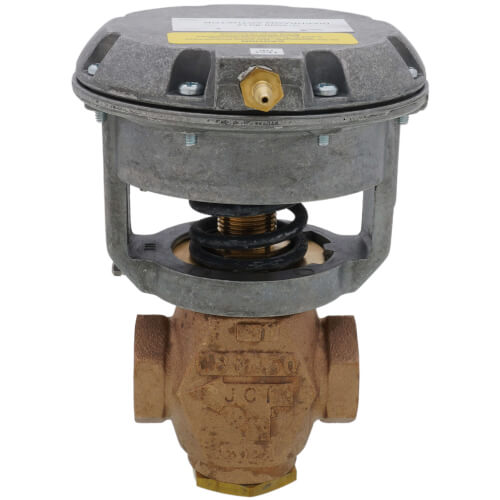

Johnson Controls VG7441ET+3008E Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7441ET+3008E is a globe valve assembly that features a two-way design with a half inch NPT connection. It operates within a pressure range of nine to thirteen psi and has a flow capacity of up to 1.8 CV. This valve is suitable for use in HVAC systems where controlling the flow of water and steam is necessary.

• Two-way normally closed operation.
• Brass body for resistance to corrosion.
• Factory-mounted pneumatic actuator included.

Product Highlights

The VG7441ET+3008E is engineered to provide precise flow control. It is ideal for various industrial applications such as HVAC systems, food processing, and chemical handling.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7441ET+3008E

Technical Specifications

• Valve Size: 1/2 inch
• Max Flow: 1.8 CV
• Body Material: Bronze
• Spring Range: 9 to 13 psi
• Operating Conditions: 35°F to 248°F
• Actuator Operating Conditions: -20°F to 150°F
• Closeoff Pressure: 348 psi
• Flow Characteristic: Equal Percentage
