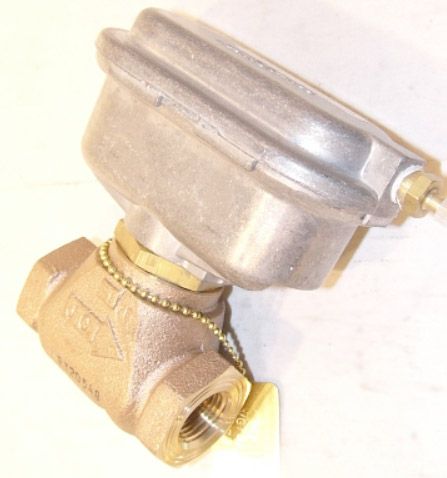

Johnson Controls VG7241CS+3801D 1/2 inch NPT Bronze Pneumatic Valve

Product Description

The Johnson Controls VG7241CS+3801D pneumatic valve is a high-quality component designed for reliable fluid control. Constructed from durable bronze, this valve is ideal for use in both steam and water applications. Featuring a 1/2 inch NPT connection, it offers easy integration into existing piping systems.

• Compact design suitable for limited-space installations
• Normally open, 2-way valve functionality
• Equipped with a pneumatic actuator for enhanced control

Product Highlights

This valve operates within a 4-8 psi spring range and supports a maximum flow rate of 0.73 CV, ensuring efficient fluid management. Its straightforward pneumatic operation and sturdy construction make it a reliable choice for both commercial and industrial settings.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: VG7000

Technical Specifications

• Valve Size: 1/2 inch
• Connection Type: NPT
• Body Material: Bronze
• Max Pressure: 15 psi WSP, 125 psi WOG
• Weight: 2.30 lbs
