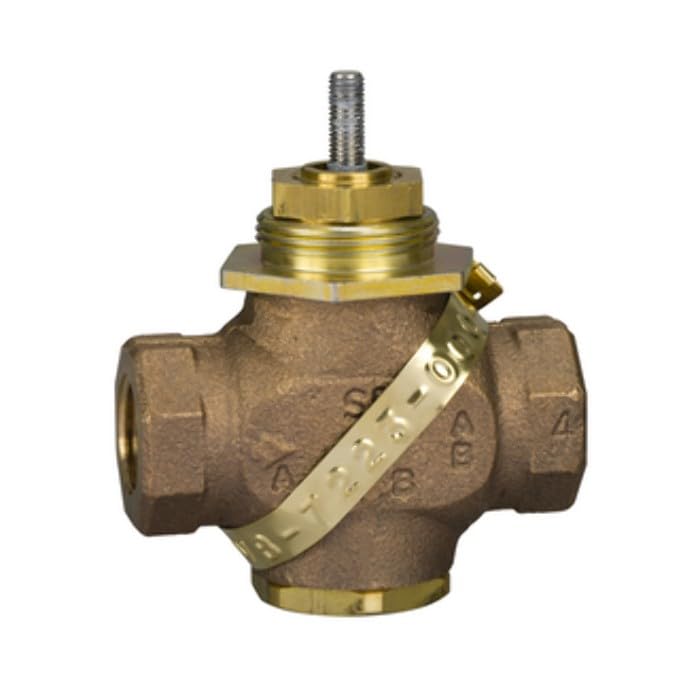

Schneider Electric VB-7223-0-4-04 Series Vb-7000 Two-Way Globe Valve Body Npt Threaded Straight Pipe End Connection Stem Up Closed Brass Plug 1/2 Port Size

Product Description

The Schneider Electric VB-7223-0-4-04 is a Series Vb-7000 two-way globe valve body. It is designed for use in various HVAC applications, including chilled water, hot water, and steam systems. This model features a NPT threaded straight pipe end connection and comes with a stem-up-closed brass plug. The port size is 1/2 inch.

• High range ability provides fine, accurate control for more efficient, responsive, and comfortable regulation.
• Tight sealing with ultra-low energy leakage on shutoff for energy conservation with soft seating.
• High differential-pressure rating of up to 87 psi for reliable operation in demanding applications.

Product Highlights

This valve provides efficient control for various HVAC applications including chilled water and hot water systems. It features a patented precision plug ensuring high-range ability and efficient heat transfer. The valve is RoHS compliant and meets multiple standards, ensuring environmental safety and high tolerance to high differential pressures.

Product Information

Standard Information

• Manufacturer: Schneider Electric Buildings
• Brand: Schneider Electric
• Model: VB-7223-0-4-04

Technical Specifications

• Port Size: 1/2 inch
• Connection: NPT threaded
• Plug Material: Brass
• Pressure Rating: Up to 87 psi
• Standards: RoHS, ANSI, PED, CRN
• Compatible Applications: Chilled water, hot water, steam
• Weight: 14.770954 lbs
• Package Weight: 1.00089748 lbs
