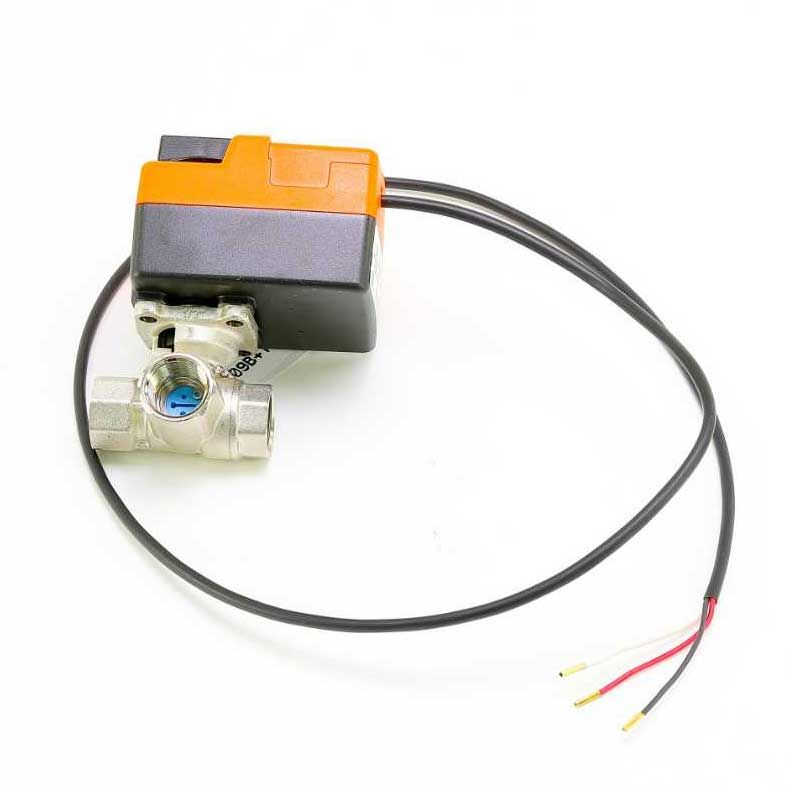

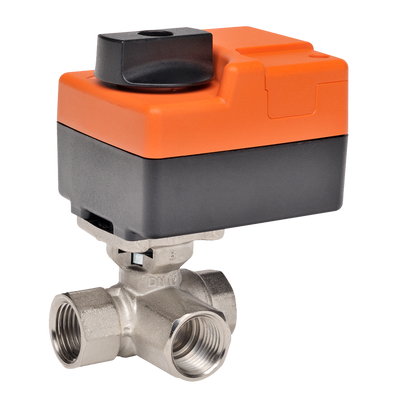

Belimo B309B+TR24-3 CCV 24V Floating 0.8 Cv with Non-Spg 3 Way Valve

Product Description

The Belimo B309B+TR24-3 3-way valve is designed for air handling units on heating or cooling coils. This valve is also ideal for fan coil unit heating or cooling coils, unit ventilators, VAV box reheat coils, and bypass loops. It is suitable for hydronic systems with variable or constant flow.

• 3-way valve with 0.8 Cv
• Non-spring return actuator
• Suitable for chilled or hot water systems

Product Highlights

This valve features a non-spring return actuator and is used in hydronic systems with chilled or hot water. It has brass trim and operates on 24V floating control.

Product Information

Standard Information

• Brand: Belimo
• MPN: B309B+TR24-3

Technical Specifications

• Valve Size: 0.5 inches
• Cv: 0.8
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Degree of Protection: IP40 NEMA 1
• Electrical Connection: Cable
• Manual Override: Push down handle
• Voltage AC/DC: AC 24V
• Power Consumption (Running): 1 W
• Running Time (Motor): 90 seconds / 90 degrees
• Angle of Rotation: 90 degrees
• Trim: Chrome plated brass
• Pressure Independent: No
• Controllable Flow Range: 75%
