Resideo NK300S-100 16GPM Boiler Feed Combo Valve

Product Description

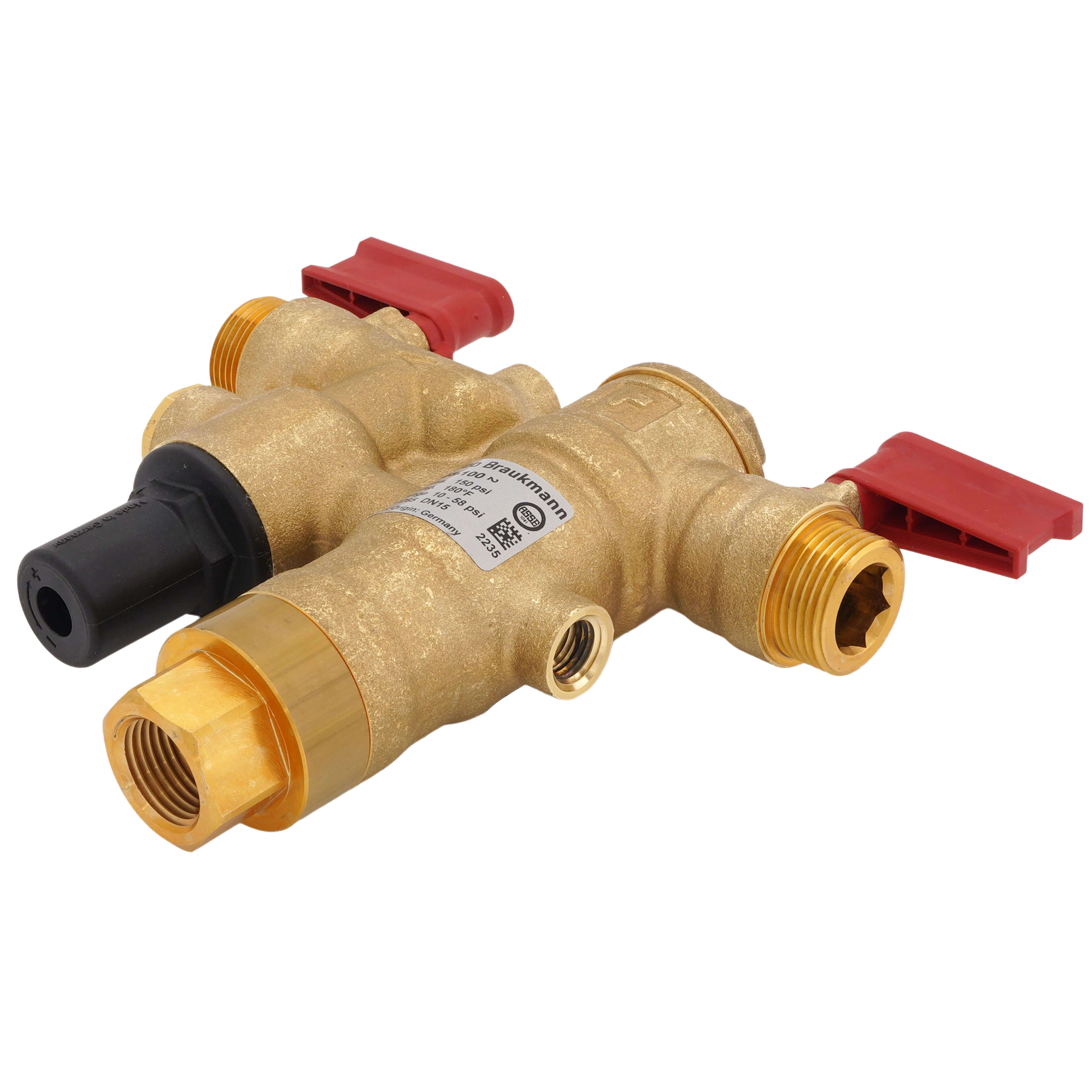

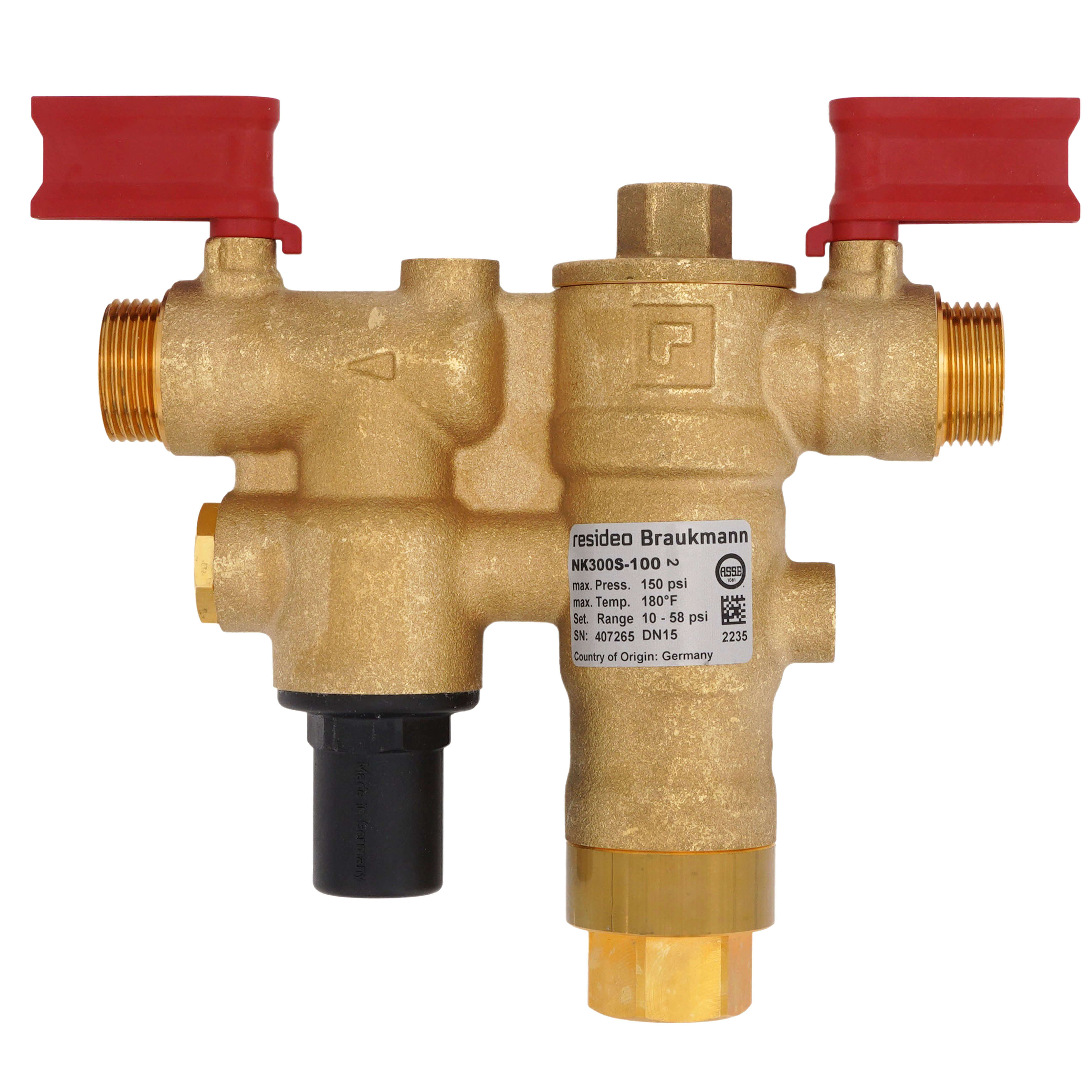

The Resideo NK300S-100 Boiler Feed Combo Valve is designed for use in industrial boiler systems. It offers a maximum flow rate of 16 gallons per minute and features robust brass construction. The valve includes an internal bypass for precise flow control, a spring-loaded check valve for backflow prevention, and a manual shutoff valve for isolation.

• 16 GPM flow rate
• Brass construction for durability
• Integrated backflow prevention

Product Highlights

This valve maintains boiler feed water supply and prevents backflow, ensuring proper operation. It provides exact flow control to optimize system efficiency and offers long-term reliability.

Product Information

Standard Information

• Brand: Resideo
• Model: NK300S-100

Technical Specifications

• Flow Rate: 16 GPM
• Construction Material: Brass
• Pressure Range: 10 - 58 psi
• Inlet Pressure Max: 150 psi
• Inlet Pressure Min: 30 psi
• Temperature Range: 33°F - 140°F
• Connection Type: 1/2 NPT or sweat
• Fluid Temperature Max: 180°F
• Weight: 4.22 lbs
