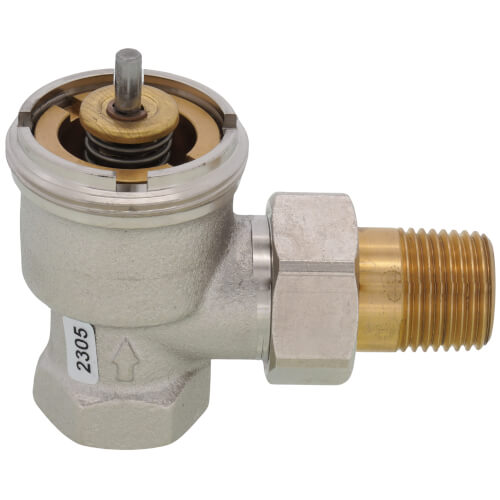

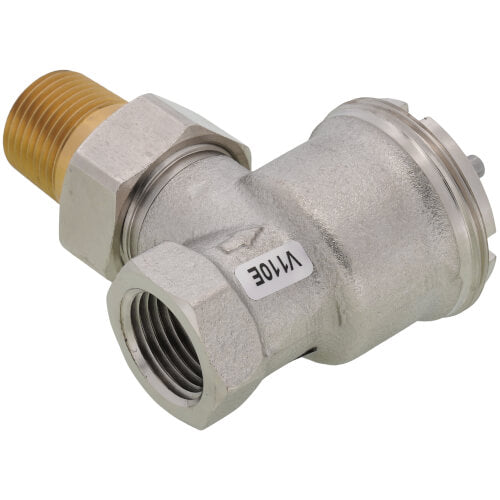

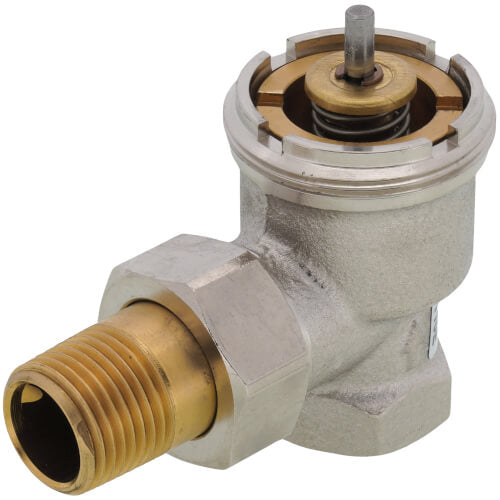

Honeywell Home V110E1004 1/2 Inch Angle Valve for High Capacity Radiator

Product Description

The Honeywell Home V110E1004 1/2 Inch High Capacity Radiator Angle Valve offers robust control of room temperature within two-pipe heating systems. By modulating the flow of steam or hot water, this valve ensures effective heating across high-capacity units, such as free-standing radiators and convectors.

• Integrated EPDM disc ensures tight shutoff for reliable performance in steam or hot water systems.
• Features a nickel-plated bronze body with cartridge insert for straightforward in-line service.
• No electrical connection required, simplifying installation and maintenance.

Product Highlights

This valve is engineered to be normally open without a control mounted and can be paired with either manual or electric actuators for enhanced functionality.

Product Information

Technical Specifications

• Body Material: Nickel Plated Bronze
• Connection: 1/2 Inch FNPT x MNPT Union
• Maximum Pressure: 150 psi (Hot Water), 15 psi (Steam)
• Temperature Capability: Up to 248 degrees Fahrenheit
• Dimensions: 1 inch x 2.56 inches
• Flow Capacity: 4.6 Cv
