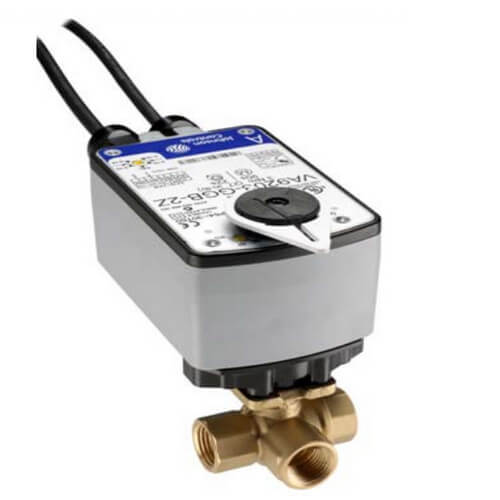

Johnson Controls VG1841AG+923AGA Model VG1841AG Three-Way Plated Brass Trim NPT Ball Valve VA9203-AGA-2Z Port A Open Spring-Return Actuator

Product Description

The Johnson Controls VG1841AG+923AGA is a versatile three-way plated brass trim NPT ball valve, combined with a VA9203-AGA-2Z electrical actuator. This unit regulates the flow of hot or chilled water and low-pressure steam in HVAC systems.

• Forged Brass Body provides 580 psig static pressure rating
• Three-way valve with electric actuator
• Suitable for HVAC system control

Product Highlights

The Johnson Controls VG1841AG+923AGA is a factory or field-mounted HVAC control valve designed for precise regulation of fluid flow. It is compatible with the VA9203 Series Spring-Return Electric Actuators.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1841AG+923AGA

Technical Specifications

• Fluid Temperature Range: 23 to 203 degrees Fahrenheit
• Flow Capacity (Cv): 4.7
• Body Pattern: 3-Way
• Actuator Type: Floating Point, On/Off
• Fail Safe Mode: Port A Open, Spring Return
• Power Requirements: 24 VAC +/- 20%, VDC +/- 10%
• Electrical Connection: 120 in. (3.05 m) 19 AWG Plenum Cable
• Connection Type: Threaded
• Weight: 5 pounds
• Dimensions: 5 x 5 x 3 inches (L x W x H)
