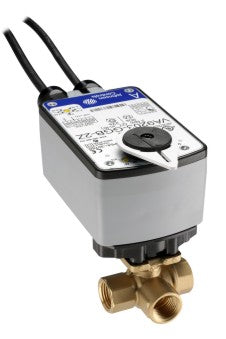

Johnson Controls VG1841AF+923BUB Three-Way Ball Valve NPT End Brass Trim 1/2 to 2 Inch

Product Description

The Johnson Controls Model VG1841AF Two/Three-Way Ball Valve is engineered for precision in HVAC systems regulation. Crafted for a robust response to controller demands, this valve facilitates the flow of hot or cold water and, in certain configurations, low-pressure steam. It’s compatible with several Johnson Controls actuator models, including the VA9104, M9106, M9109, and M9100 Series Non-Spring-Return, along with the VA9203 and VA9208 Series Spring-Return Electric Actuators.

• Equipped with a forged brass body for a high static pressure rating of 580 psig.
• Manufactured in the United States, ensuring high-quality construction.
• Lightweight design at approximately 0.6 lbs for easy installation.

Product Highlights

Optimal for both commercial and residential installations, it ensures reliable performance and durability, pivotal for system longevity and efficiency.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1841AF+923BUB

Technical Specifications

• Type: Ball Valve
• Body Material: Forged Brass
• Connection Type: NPT End
• Pressure Rating: 580 psig
• Size Range: 1/2 inch to 2 inches
• Country of Origin: United States
• Package Dimension: 6 inches L x 5 inches W x 6 inches H
• Weight: 0.6 lb
