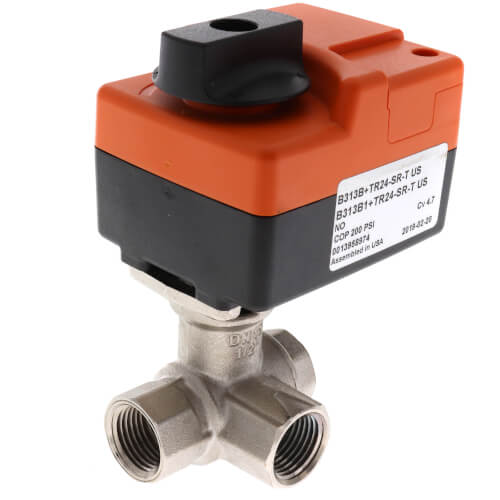

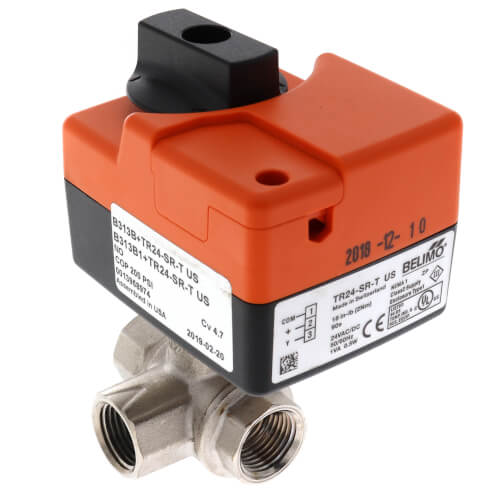

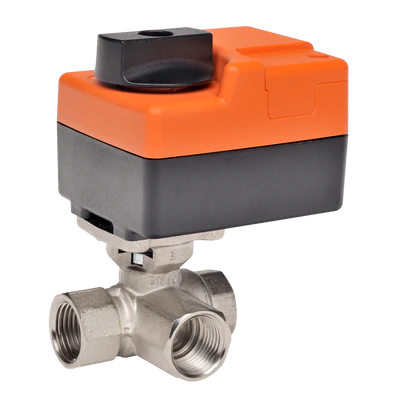

Belimo B313B+TR24-SR-T CCV 0.5 Inch 3 Way 4.7 Cv Non-Spring Return 24V 2-10V

Product Description

The Belimo B313B+TR24-SR-T serves as a comprehensive HVAC control solution, designed for efficient fluid management in heating or cooling applications. This product combines the durable B313B valve with the robust TR24-SR-T actuator to provide reliable performance in various systems, including air handling, fan coils, and VAV systems.

• Ease of integration with existing HVAC systems.
• Designed for both variable and constant flow conditions.
• Optimal for hydronic systems with up to 60% glycol content.

Product Highlights

Equipped with a non-spring return mechanism and a manual override feature, the TR24-SR-T actuator ensures reliability and ease of operation. Its intuitive design offers precise control with a 2-10V DC input and has a quick running time of 90 seconds.

Technical Specifications

• Actuator Type: Non fail-safe
• Control Type: DC 2-10 V
• Valve Size: 0.5 inches
• Flow Capacity: 4.7 Cv
• Connection Type: Internal thread
• Electrical Connection: Terminals
• Voltage: AC/DC 24V
• Manual Override: Push down handle
