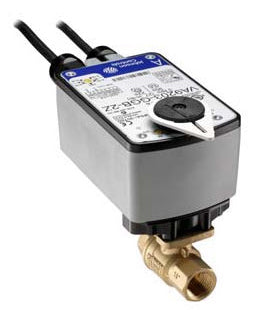

Johnson Controls VG1241AL+943AGA Model VG1241AL Two-Way Plated Brass Trim NPT End Connections Ball Valve with Model VA9203-AGA-2Z Spring-Return Closed Without Switch Electric Actuator

Product Description

The Johnson Controls VG1241AL+943AGA valve is designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in HVAC systems. This model includes a two-way plated brass trim with NPT end connections and an electric actuator.

• Forged Brass Body provides 580 psig static pressure rating
• Threaded connection type
• Spring return, port A closed

Product Highlights

The Johnson Controls VG1241AL+943AGA valve offers efficient control over hot or chilled water in HVAC systems. The valve features a forged brass body with a 580 psig static pressure rating. It is equipped with a spring return actuator, which ensures reliable operation. Suitable for a range of HVAC applications, it also comes with a 120-inch plenum cable.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1241AL+943AGA
• Product Type: Valve
• Manufacturer: Johnson Controls, Inc

Technical Specifications

• Connection Type: Threaded
• Body Pattern: 2-Way
• Material: Brass
• Torque: 27 lb-in
• Fail Safe Mode: Spring Return, Port A Closed
• Flow Capacity (Cv): 7.4
• Fluid Temperature Range: 23 to 203 degrees Fahrenheit
• Dimensions: 1/2 inch
