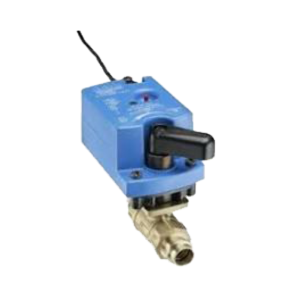

Johnson Controls VG1245AF+9T4IGA Ball Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG1245AF+9T4IGA is a two-way ball valve assembly designed for HVAC systems. It measures one-half inch and features a forged brass body, stainless steel ball, and a blowout-proof stem. This valve is suitable for hot water, chilled water, 50/50 glycol solutions, and saturated steam applications. The product is designed to operate under varying load conditions, providing accurate control.

• NPT connection
• 500:1 rangeability
• Direct mount electric actuator

Product Highlights

This valve assembly provides effective sealing and control in HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Product Name: Ball Valve Assembly, 2 Way, 1/2 in.

Technical Specifications

• Housing: NEMA 1, IP40
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam
• Power Consumption: 3.0 VA
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -4 F to 140 F
• Electrical Connection: M3 Screw Terminals
