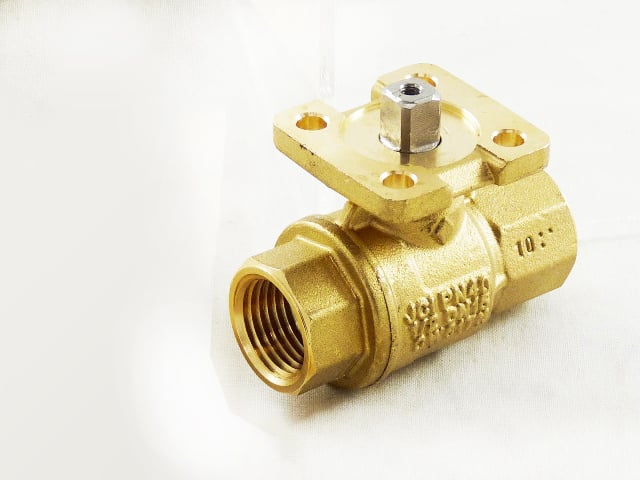

Johnson Controls VG1245AD+943BGB Model VG1245AD Two-Way Stainless Steel Trim NPT End Connection Ball Valve with Model VA9203-BGB-2 Closed Spring-Return Electric Actuator One Switch

Product Description

The Johnson Controls VG1245AD+943BGB combines a two-way stainless steel trim NPT end connection ball valve with an electric actuator model VA9203-BGB-2 . The VG1245AD ball valve is part of the VG1000 Series, designed to regulate the flow of hot or chilled water and low-pressure steam in HVAC systems. Its compatibility with Johnson Controls electric actuators ensures reliable performance.

• Forged brass body with static pressure rating of 580 psig
• Sizes from 1/2 inch to 2 inches available
• Compatible with VA9104, M9106, M9109, M9100, VA9203, and VA9208 actuators

Product Highlights

This product is ideal for those looking to regulate water flow in HVAC systems. The stainless steel trim and brass construction offer durability and long-term performance.

Product Information

Standard Information

• MPN: VG1245AD+943BGB
• Manufacturer: Johnson Controls
• Brand: Johnson Controls
• Number of Items: 1

Technical Specifications

• Body Material: Forged Brass
• Static Pressure Rating: 580 psig
• Available Sizes: 1/2 inch to 2 inches
• Connection Type: NPT End
• Compatible Actuators: VA9104, M9106, M9109, M9100, VA9203, VA9208
