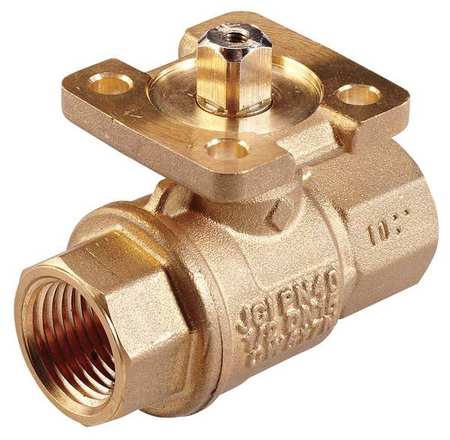

Johnson Controls VG1245ANH943BGA Two-Way Stainless Steel Trim NPT Ball Valve

Product Description

Johnson Controls presents the VG1245ANH943BGA, a top-grade two-way ball valve ideal for HVAC systems. Configured to manage the regulation of hot or chilled water, and in certain models, low-pressure steam, this valve integrates seamlessly with a variety of Johnson Controls non-spring return and spring-return electric actuators. Often used for on/off, floating, or proportional controls, it is a dependable choice for systems requiring precise flow regulation.

• Designed to connect with VA9104, M9106, M9109, and M9100 series actuators
• Optimal for sizes 1/2 inch through 2 inches
• Constructed from durable forged brass

Product Highlights

With a static pressure rating of 580 psig, this valve maintains robust performance under varying pressures, ensuring longevity and reliability in commercial HVAC setups.

Product Information

Standard Information

• Product Type: Valve
• Brand: Johnson Controls

Technical Specifications

• Body Material: Forged Brass
• Size Range: 1/2 inch to 2 inches
• Pressure Rating: 580 psig
• Compatible Actuators: VA9104, M9106, M9109, M9100, VA9203, VA9208
