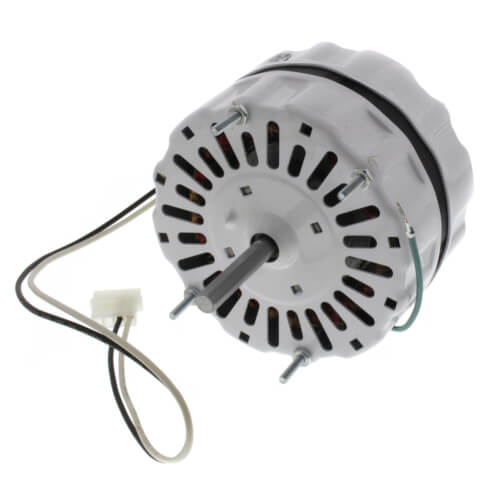

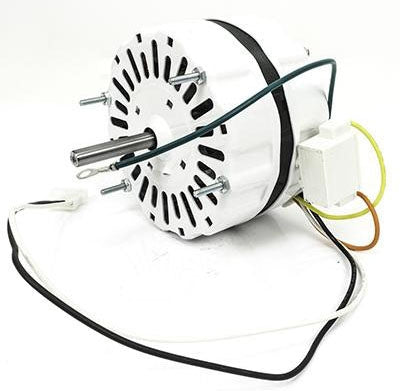

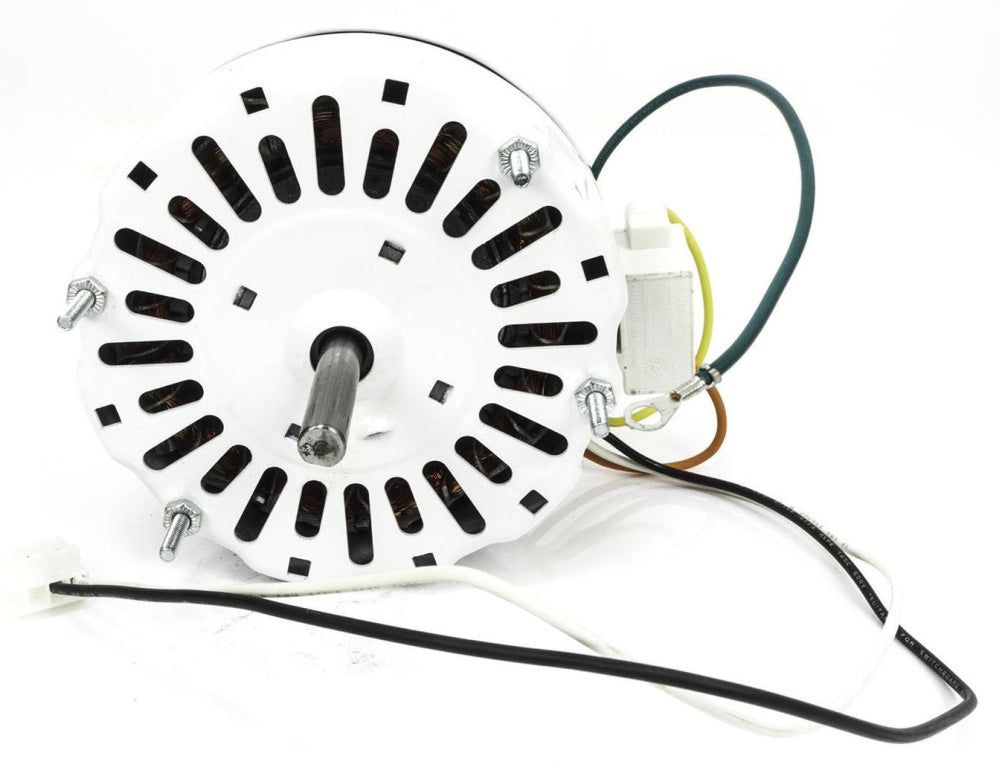

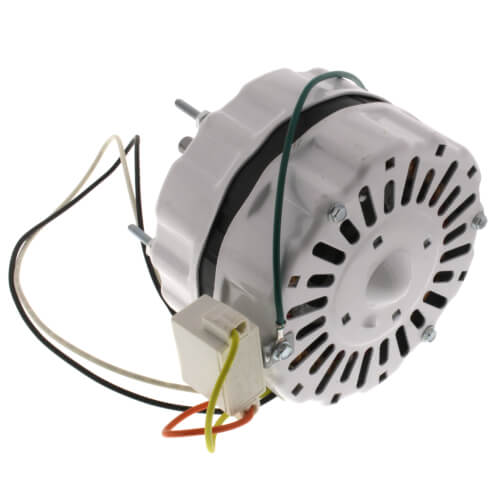

Packard 90520 Motor 1/16 HP 115V 1200 RPM

Product Description

The Packard 90520 Motor is a reliable 1/16 horsepower motor designed for industrial use. This motor operates at 115 volts with a frequency rating of 60 hertz. Its rotation speed is 1200 RPM, making it suitable for moderate to high-speed applications. The NEMA 42 frame and open enclosure design ensure durability.

• 1/16 HP output for efficient operation
• 115V voltage and 1PH design for versatile industrial use
• 1200 RPM speed for high-speed applications

Product Highlights

The Packard 90520 Motor features automatic overload protection and permanently lubricated sealed sleeve bearings, ensuring longevity and uninterrupted operation. Its thru-bolt mounting system and compact design make it easy to install and durable enough for challenging environments.

Product Information

Standard Information

• Manufacturer: Packard
• MPN: 90520
• UPC: 840899112107

Technical Specifications

• Power Rating: 1/16 HP
• Voltage Rating: 115 Volt AC
• Frequency Rating: 60 Hertz
• Motor FLA: 1.5 Amp
• Number of Speeds: 1
• Speed Rating: 1200 RPM
• NEMA Frame Size: 42
• Mounting: Thru-Bolt
• Type: Permanent Split Capacitor
• Rotation Type: Clockwise Shaft End
• Bearing Type: Permanently Lubricated Sealed Sleeve
• Diameter: 5.12 inches
• Shaft Size: 3/8 inch diameter x 2-1/4 inch length
• Includes: Capacitor, Cap
• Weight: 6.2 lbs
