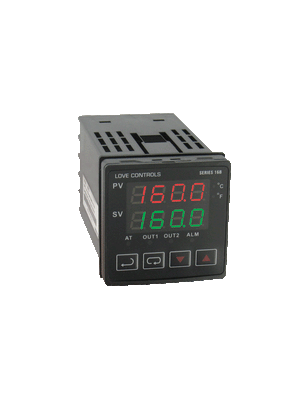

Dwyer 16B-53 1/16-DIN Universal Input Temperature Controller

Product Description

Enhance your system's performance with the Dwyer 16B-53, a 1/16-DIN universal input temperature controller designed for meticulous monitoring and control of temperature or process applications. Ideal for industrial environments, this controller integrates seamlessly with existing setups to deliver precision and reliability.

• Wide-ranging input compatibility with thermocouples, RTDs, voltage, and current signals.
• Advanced control options including ON/OFF, PID, self-tune, and manual tuning.
• Dual alarm outputs with thirteen user-configurable functions.

Product Highlights

This controller offers versatility with its compatibility with various signal inputs and provides precise control with PID supported on B series, inclusive of 64 ramp/soak options. The built-in dual LED display aids in clear and direct process monitoring.

Product Information

Standard Information

• Input Types: Accepts thermocouple, RTD, voltage, and current inputs.
• Control Methods: ON/OFF, PID, self-tune, manual tune.
• Display: Dual LED for process value, set points, and output status.
• Communication: RS-485 Modbus for reliable data transmission.

Technical Specifications

• Operating Temperature: 32 to 122 degrees Fahrenheit
• Control Outputs: Relay (5A at 250VAC), voltage pulse, and current (4-20mA)
• Supply Voltage: 100 to 240 VAC, 50/60 Hz
• Approval: CE, RoHS, cUL, UL listed
• Construction: Robust, suitable for harsh environments
