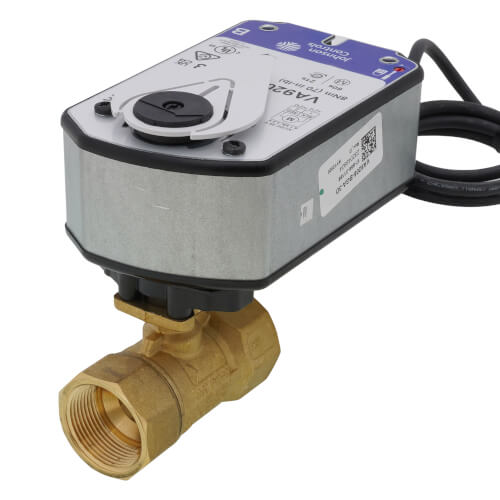

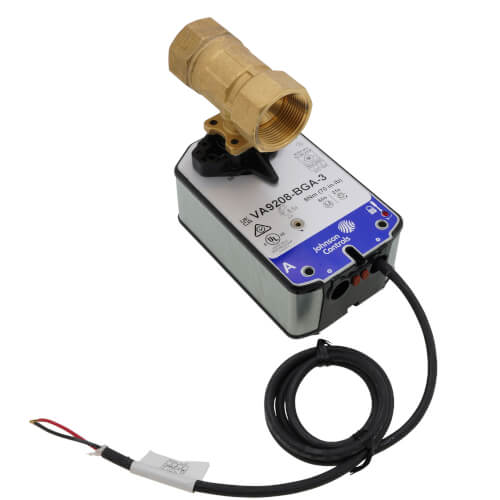

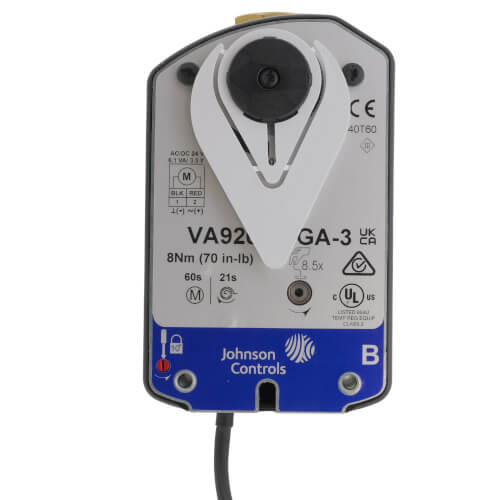

Johnson Controls VG1241DP+958BGA Two-Way Brass Valve Electric Actuator

Product Description

The Johnson Controls VG1241DP+958BGA model features a robust two-way ball valve designed to manage the flow of hot or chilled water in HVAC systems across various commercial settings. The assembly includes a VA9208 series spring-return electric actuator for reliable automated control.

• Robust brass body suitable for high-pressure applications up to 580 psig.
• Compatible with sizes ranging from 1/2 inch to 2 inches (DN15 to DN50).
• Mountable with Johnson Controls M9100 and VA9208 series actuators for enhanced flexibility and control.

Product Highlights

This valve system is engineered for both on/off and modulating control, offering a versatile solution for your building's heating, ventilation, and air conditioning needs.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1241DP+958BGA

Technical Specifications

• Connection Type: Threaded
• Pressure Rating: 580 psig
• Actuator Type: Electric, 24V On/Off
• Body Pattern: Two-Way
• Flow Capacity (Cv): 18.7
• Temperature Range: 23 to 203 degrees Fahrenheit
