Grundfos 519603 1-1/4 in. NPT Cast Iron Flange Set

Product Description

The Grundfos 519603 is a 1-1/4 inch NPT cast iron flange set. This flange set is designed for use with circulator pumps, specifically the UP series GF 15 and GF 26 models. It includes two flanges, two gaskets, and bolts for easy installation.

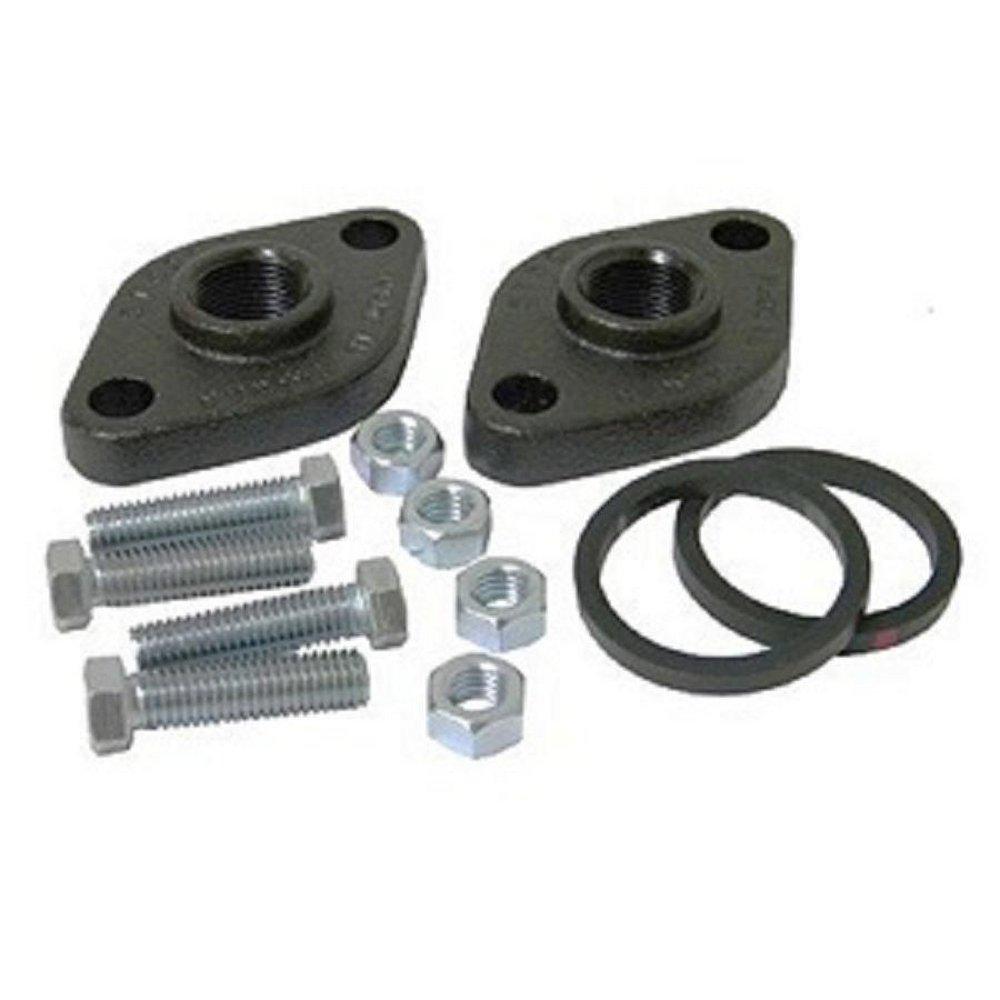

• Includes two flanges, two gaskets, four nuts, and four bolts.
• Constructed from durable cast iron material.
• Compatible with Grundfos UP series circulator pumps.

Product Highlights

This flange set provides a reliable connection for your circulator pumps, ensuring efficient operation and longevity.

Product Information

Standard Information

• Material: Cast Iron
• Connection Type: FNPT
• Pipe Size: 1-1/4 Inches

Technical Specifications

• Includes: (2) Flanges, (2) Gaskets, (4) Nuts, (4) Bolts
• Length: 4-1/4 Inches
• Height: 2-3/4 Inches
• Other Dimensions: 1/2 Inch Bolt Hole Diameter, 3.13 Inch Bolt Circle Diameter, 3/4 Inch Length Through Hub, 1/2 Inch Thickness
