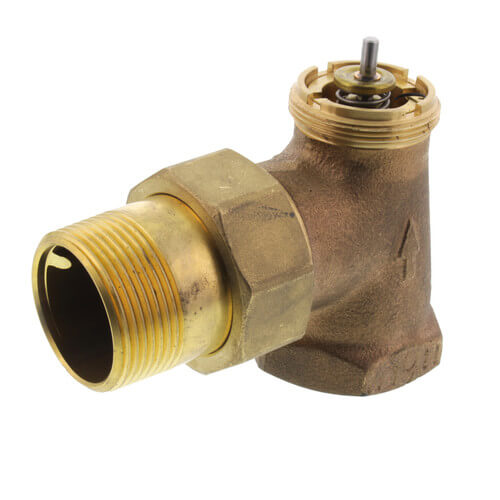

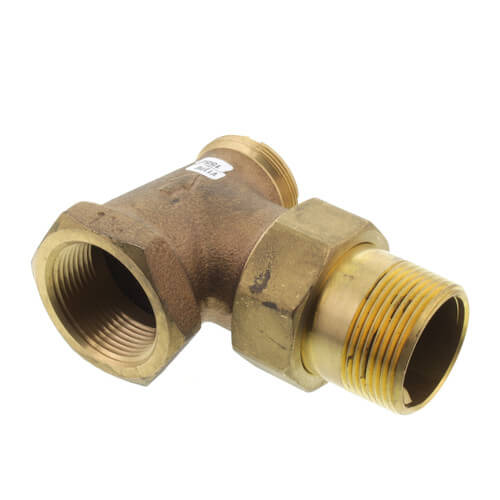

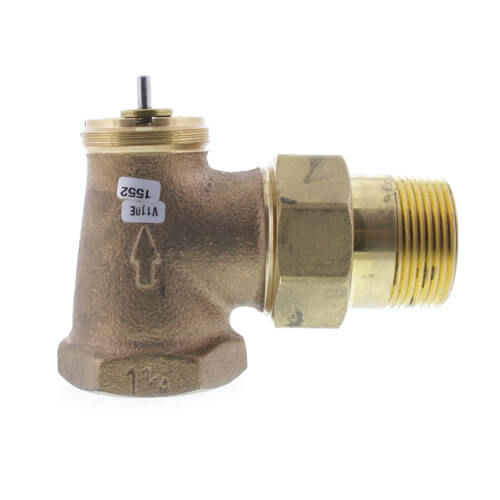

Resideo V110E1028 1-1/4 Angle Valve High Capacity Radiator

Product Description

The Resideo V110E1028 is a 1-1/4 inch angle valve designed for high capacity radiators. This valve provides precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam.

• Nickel-plated bronze body
• No electrical connections required
• EPDM valve seat disc for tight shutoff

Product Highlights

The Resideo V110E1028 angle valve monitors and adjusts room temperature for consistent comfort. Suitable for high capacity radiator systems, this valve ensures reliable operation and easy service. It can be used with T104 Thermostatic Actuators and MV110 Electric Zone Valve Actuator.

Product Information

Standard Information

• Brand: Resideo
• MPN: V110E1028
• Category: Thermostatic Radiator Valves

Technical Specifications

• Application Type: Hot water, 2-pipe steam
• Pipe Size: 1-1/4 inches (DN32)
• Body Pattern: Angle
• Capacity: High
• Capacity (Cv): 8 Cv
• Capacity (Btu/hr-steam): 193,000 Btu/hr
• Connection Type: Threaded
• Pressure Ratings (Hot Water): 150 psi max
• Pressure Ratings (Steam): 15 psi max
• Differential Pressure Ratings: 17 psi max
• Temperature Ratings (F): 248 F max
• Temperature Ratings (C): 120 C max
• Materials (Body): Bronze
• Used With: T104
