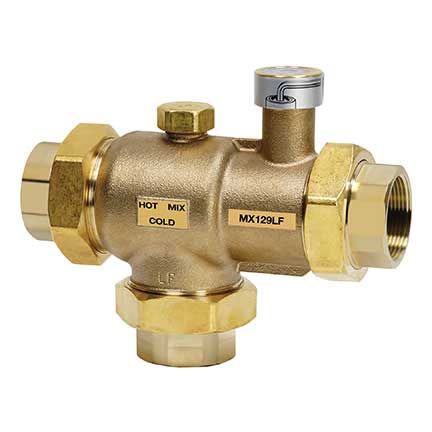

Honeywell MX129LF Thermostatic Mixing Valve FPT 1-1/2 x 1-1/2

Product Description

The Honeywell MX129LF is a large flow proportional thermostatic mixing valve designed for tempered domestic potable water applications. This valve is suitable for installations requiring quick response and effective flow reduction in case of cold water supply interruption. It is built with a recirculation connection and can be installed in any position.

• Quick response with recirculation connection
• Flow reduction feature for safety
• Installable in any position

Product Highlights

This mixing valve is engineered to control water temperatures efficiently. Its brass body ensures durability. Key features include a 1-1/2 inch FPT connection, 3.5 GPM minimum flow, and a maximum pressure capacity of 150 psi.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MX129LF

Technical Specifications

• Valve Application: Tempered Domestic Potable Water
• Body Material: Brass
• Valve Connection: FPT
• Inlet Connection Size: 1-1/2 inches
• Outlet Connection Size: 1-1/2 inches
• Minimum Flow GPM: 3.5 GPM
• Minimum Outlet Temperature: 113°F
• Maximum Outlet Temperature: 149°F
• Max Pressure: 150 psi
• Point-of-Use Certified: No
• Point-of-Source Certified: Yes
• ASSE Classification: 1017
• Weight: 8.50 lbs
