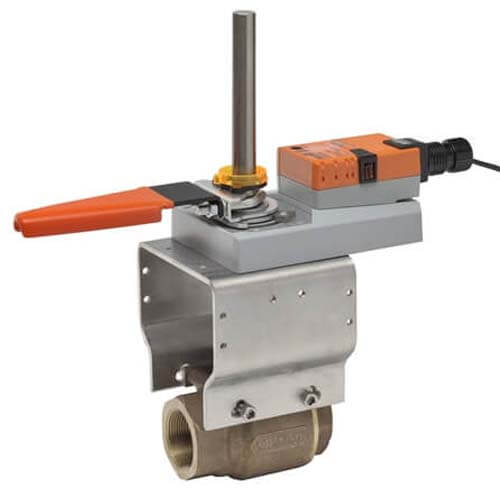

Belimo B239VS+GMB24-3X1 Ball Valve 1.5 Inch 2-Way 84 Cv Non-Spring 24V Floating

Product Description

The Belimo B239VS+GMB24-3X1 is a 1.5-inch 2-way ball valve designed for optimal flow control in HVAC systems. With a Cv of 84 and non-spring return actuator, this valve ensures reliable performance under variable flow conditions.

• Equal percentage flow characteristic for precise control.
• Integrated characterizing disc for linear flow.
• Non-spring return actuator type with 24V floating control.

Product Highlights

This ball valve is ideal for use in heating and cooling applications, including air handling units and fan coil units. It offers improved stability and energy efficiency in part-load operations.

Product Information

Standard Information

• Brand: Belimo
• Material: Stainless steel trim
• Control Type: Floating/3-point

Technical Specifications

• Size: 1.5 inch
• Type: 2-way
• Flow Capacity: Cv 84
• Actuator Type: Non-fail-safe
• Voltage: AC/DC 24V
• Pressure Independence: No
• Manual Override: External push button
