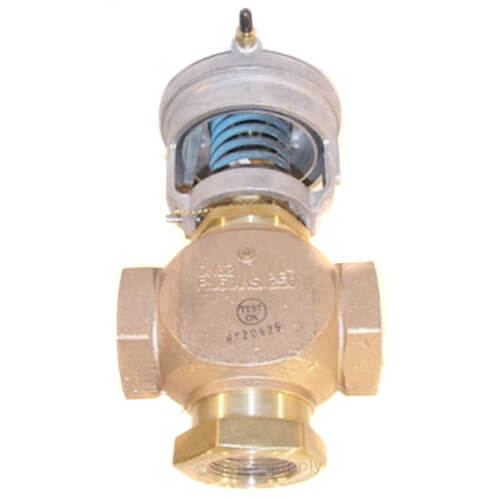

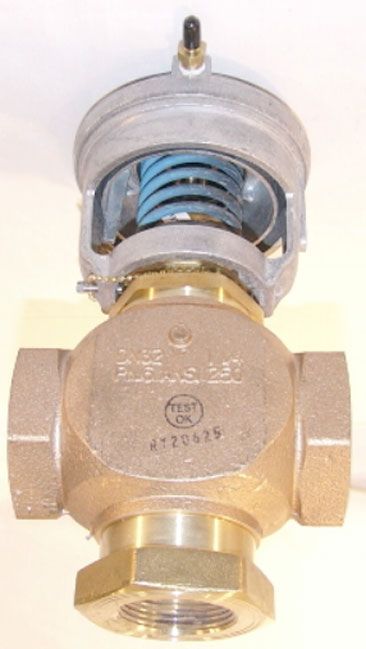

Johnson Controls VG7842RT+3008D Globe Valve Assembly 3 Way 1-1/2 in

Product Description

The Johnson Controls VG7842RT+3008D is a three-way globe valve assembly designed for HVAC applications. It facilitates the efficient control of hot water, chilled water, glycol solutions, and steam.

• Body material: Bronze with stainless steel stem
• Pressure rating: ANSI Class 250
• Operating conditions: Suitable for temperatures from thirty-five degrees Fahrenheit to two hundred forty-eight degrees Fahrenheit

Product Highlights

This valve is ideal for mixing applications, offering a Cv of twenty-eight point nine, making it suitable for effective flow control in multiple HVAC configurations.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7842RT+3008D

Technical Specifications

• Valve Size: 1-1/2 inches
• Body Material: Bronze
• Flow Characteristic: Linear
• Max Pressure: 15 psi WSP, 125 psi WOG
• Closeoff Pressure: 30/9 psig
• Actuator Operating Conditions: -20 F to 150 F
• Service: Hot water, chilled water, glycol solutions, steam
