Product Description

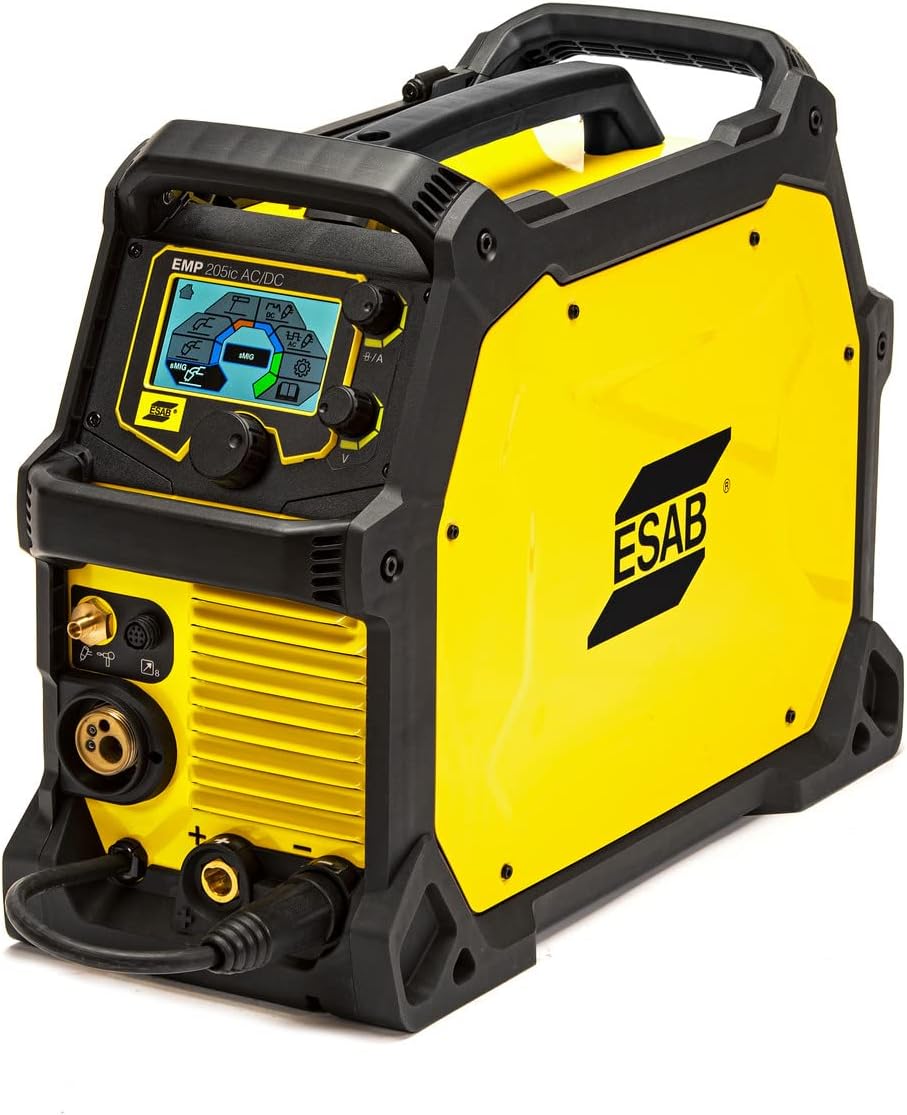

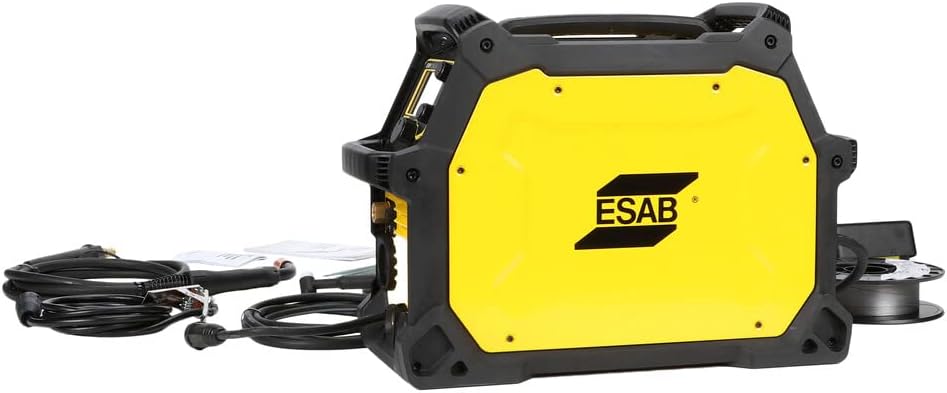

The ESAB Rebel EMP 205ic AC/DC Multi-Process MIG/STICK/TIG Welder with MPN 0558102553 offers flexibility and high performance. This portable welding system is suitable for industrial applications.
- AC and DC TIG welding capabilities
- High frequency start in DC and AC modes
- Exclusive sMIG (smart MIG) technology
Product Highlights
The welder is equipped with advanced TIG features, high frequency start, and balance adjustment. It supports various welding processes, ensuring stable and superior welds.
Product Information
Standard Information
-
Brand: ESAB
-
MPN: 0558102553
-
Model: Rebel EMP 205ic
Technical Specifications
-
Material: Metal
-
Included Components: Rebel EMP 205ic AC/DC Multi-Process MIG/STICK/TIG Welder
-
Input Voltage: 120V AC, 230V AC
-
Phase: Single-Phase
-
Welding Mode: CC/CV
-
Polarity: DC
-
Input Frequency: 50/60 Hz
-
Welding Processes: Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
-
Stick Welding Maximum Output Current: 180 A
-
TIG Welding Maximum Output Current: 205 A
-
MIG Welding Maximum Output Current: 235 A
-
Maximum Wire Feed Speed: 475 in/min
-
Remote Connection Type: 8-Pin (ESAB)
-
Amperage Range: 5 A to 235 A
-
Pulse Frequency: 0.1 to 500 pulses/second
-
Plug Type: Bare Leads
-

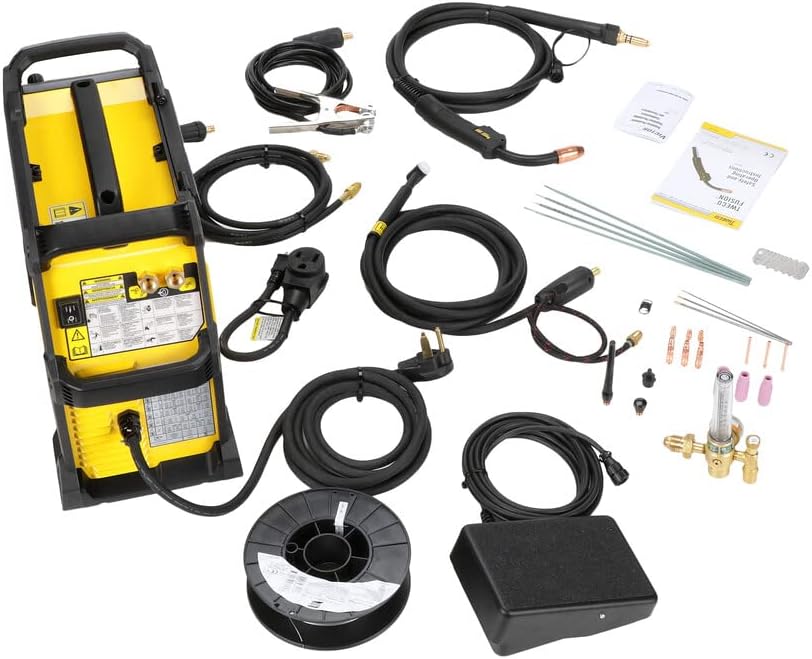

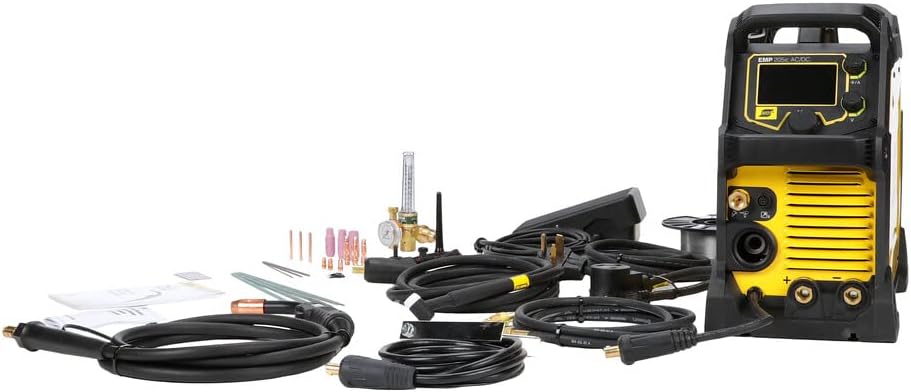

Kit Includes: Contact Tips, Flow Gauge/Regulator & Gas Hose, MIG Gun, Solid Wire, Stick Electrode Holder with Cable, Stick Electrodes, TIG Torch, Wireless Foot Control, Work Cable with Clamp
-
Overall Width: 9 in
-
Overall Height: 16 in
-
Open Circuit Voltage: 68 V
-
TIG Arc Start Feature: High Frequency Start, Lift Arc Start
-
Input Voltage (Nominal): 120V
-
MIG Welding Output @ Duty Cycle: 110 A @ 19.5V, 100%, 125 A @ 20.3 V, 60%, 150 A @ 21.5 V, 40%, 205 A @ 24.3 V, 25%
-
TIG Welding Output @ Duty Cycle: 110 A @ 14.4 V, 100%, 125 A @ 15 V, 60%, 205 A @ 18.2 V, 25%
-
Stick Welding Output @ Duty Cycle: 100 A @ 24 V, 100%, 125 A @ 25 V, 60%, 170 A @ 26.8 V, 25%
-
Rated Output at Duty Cycle (Stick): 100 A @ 100%, 170 A @ 25%
-
Country of Origin (subject to change): Multiple
