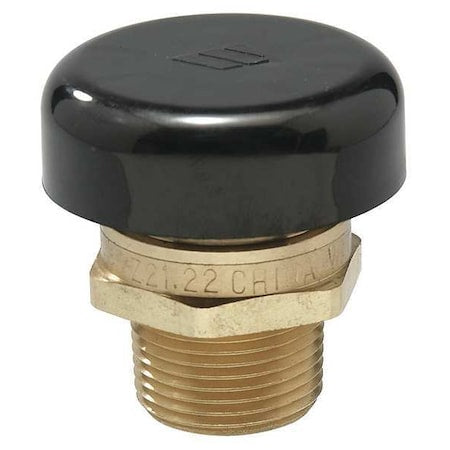

Watts LFN36M1-3/4 Vacuum Relief Valve 0 to 200 psi SS

Product Description

The Watts LFN36M1-3/4 Vacuum Relief Valve is made with a lead-free copper silicon alloy body. It features a 3/4 inch MNPT inlet and outlet and is designed to operate with pressures ranging from 0 to 200 psi. This valve is suitable for applications such as supply tanks and water heaters.

• Lead-free copper silicon alloy body
• 3/4 inch MNPT inlet and outlet
• Pressure range: 0 to 200 psi

Product Highlights

The Watts LFN36M1-3/4 Vacuum Relief Valve provides reliable performance in a variety of applications, including supply tanks and water heaters. It is factory set to 15 psi and can operate within a temperature range of 0 to 250 degrees Fahrenheit. The spring is made from stainless steel, ensuring durability.

Product Information

Standard Information

• Brand: Watts
• MPN: LFN36M1-3/4

Technical Specifications

• Body Material: Lead-Free Copper Silicon Alloy
• Inlet Type: MNPT
• Outlet Type: MNPT
• Inlet Size: 3/4 inches
• Outlet Size: 3/4 inches
• Factory Set Pressure: 15 psi
• Pressure Range: 0 to 200 psi
• Disc Material: Silicone
• Overall Height: 2 inches
• Overall Length: 2 inches
• Spring Material: Stainless Steel
• Temp. Range: 0 Degrees to 250 Degrees F
• Standards: ANSI Z21.22, CSA
• Application: Supply Tanks, Water Heater
• Country of Origin: China
